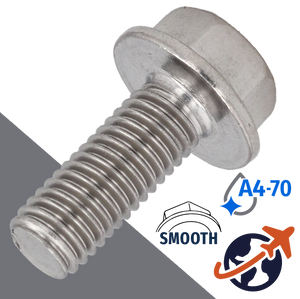

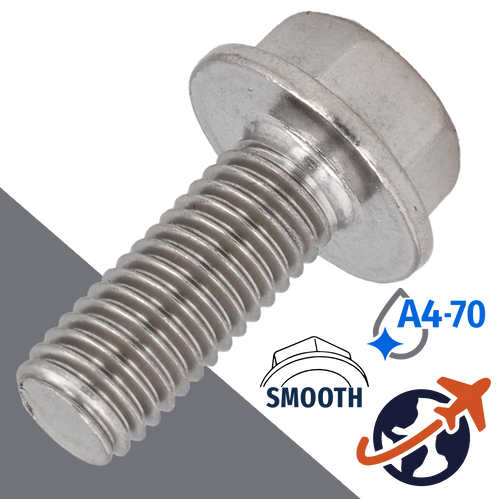

M8X1.25 Hex Head Flange Bolt - A4 Stainless DIN 6921
The smooth, non-serrated flange surface ensures superior force distribution over a greater area, eliminating the need for a separate washer. To be used with locking or non-locking nuts or in a tapped hole, commonly used on vehicle frames and various automotive applications.
Flange bolts can be used with many different styles of locking and non-locking nuts to clamp tightly to whatever the bolt is being used to secure. A wrench is used to install and tighten hex flanged bolts.
Material: A4 / SAE Type 316
A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.
Per DIN EN ISO 3506: A4-70 austenitic stainless steel specifically refers to a tensile strength of at least 700 N/mm2.
Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, photographic, medical / surgical, food processing, clean energy, etc.
Also known as
Anti-corrosive external hex drive flange bolt, one-piece flange bolt for mechanical applications, non-serrated flange screw, external hex bolt with integral washer.
