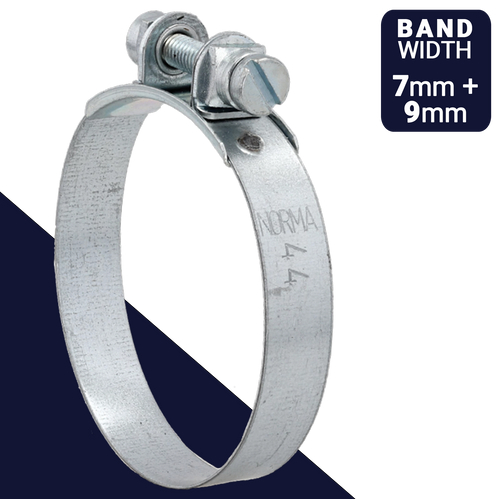

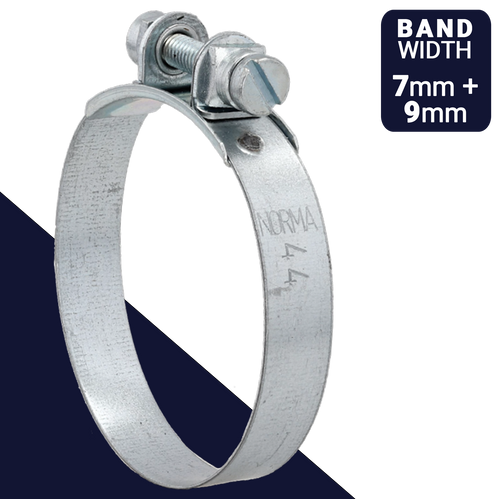

Norma S/SP Screw Clamps, Slotted Cheese Head Drive
NORMACLAMP S are good for high pressure applications. They feature a robust clamping brackets structure including a M4X22 metric screw to provide a high level of evenly distributed clamping force resulting in excellent sealing properties. Made in Germany
Suitable for attaching rubber and plastic hoses as well as rubber sleeves to pipe ends or hose spigots. This clamp can be used for clamping containers, pipes and cables. Elbow fittings, brackets or lugs can be attached.
Round Head with Slotted Drive
Static Tightening Torque Max: 1.2 Nm
Static Test Torque Max: 1.5 Nm
7mm or 9mm Band
The smooth bridge piece underneath the brackets structure provides optimum hose protection.
Band Thickness: .4mm
Material / Specification
W1 Galvanized Steel / Zinc Plated
Corrosion Resistance in Salt Spray Testing: Min. 72 h
DIN 3017
Commonly used in automotive restoration projects. Additional applications include machine building, chemical industry, irrigation systems, ship manufacturing, railway industry, agricultural machines, building machines, engine manufacturing and pump and filter assemblies.
