Detail & Specs
22 | Material | Polyamide |
62 | Measurement System | Metric |
67 | Outer Diameter | 6mm |
129 | Type of Fluid | Washer Fluid |
130 | Maximum Roll Length | 66FEET |
131 | Hose Exterior | Braided |
133 | Ethanol Rated | No |
134 | Temperature Range | -76F to 212F with spikes up to 266F |
136 | Working Pressure | 797PSI |
201 | OEM Part Number | Cohline: 3011.01.0305 |
999 | Type | Polyamide Hard Plastic Hose |

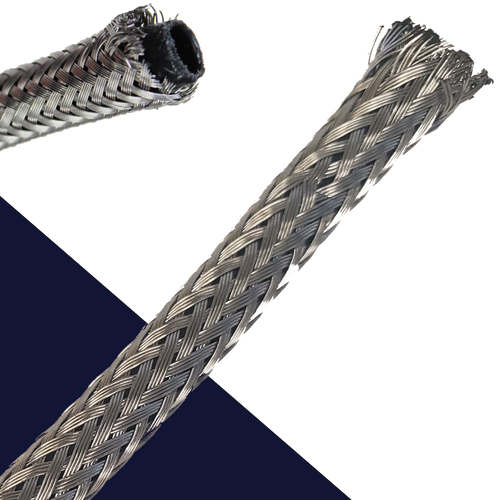

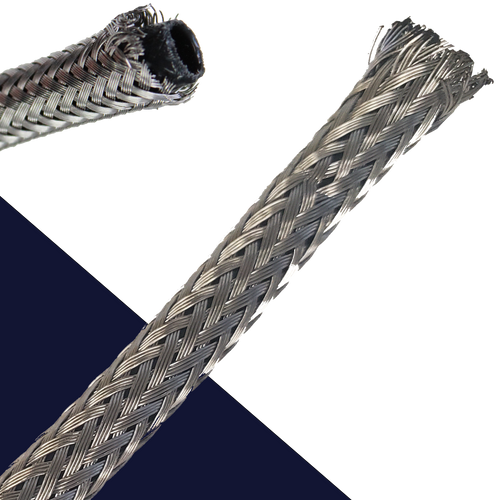

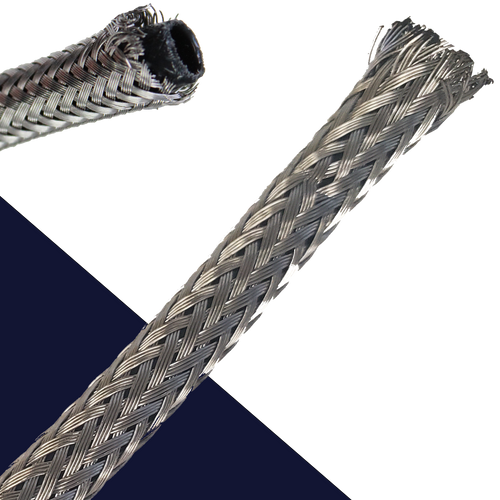

Polyamide Stainless Braid + Hard Plastic
Polyamide Fuel Line wrapped in braided stainless steel guarantees improved protection against abrasion and potential flames. To be used with a non-crimping collar to keep the stainless steel braiding from fraying.
Conditions
Working Temperature -76F to 212F with short term temperature spikes up to 266F degrees
Working Pressure at ambient temperature (68F) is 435 psi / 30 bar
Polyamide hose demonstrates mechanical resistance against abrasion, impact shock and oscillation.
Small bending radius, is easy to install, lightweight and does not require an anti corrosive.
Applications
Fuel lines, injection lines, lubrication lines, oil lines, air lines, low pressure lines, coolant lines, vacuum lines, hydraulic lines, high temperature lines and air brake lines.
***Sold by the Foot***
Hoses are cut off a continuous spool, charged per foot.
Maximum continuous length is 66 feet.
