Detail & Specs
1 | Thread Diameter + Pitch | M10X1.5, M10X1.50, M10, 10mm |
22 | Material | Stainless Steel |
23 | Finish | Plain |
30 | Overall Height | 45mm |
34 | Drive Type | Hand |
49 | Nuts Profile | Normal |
51 | Thread Direction | Right Hand |
53 | Eye Diameter | 25mm |
54 | Inner Diameter | 25mm |
62 | Measurement System | Metric |
67 | Outer Diameter | 45mm |
107 | Surface Diameter | 24mm |
199 | Specification | DIN 582 |
999 | Type | Eye Nut |
999 | Diameter + Thread | M10X1.5 |

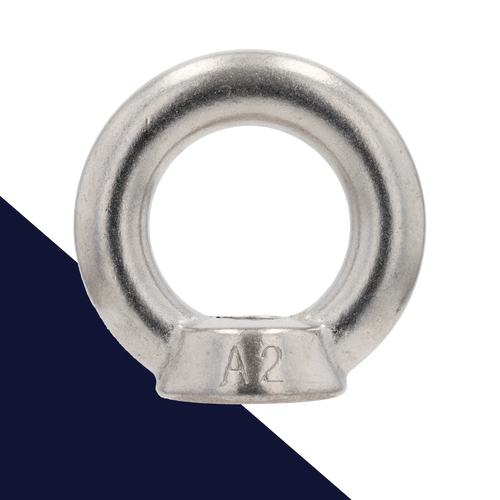

Cast Formed, Based on DIN 582
Metric Stainless Steel Lifting Eye Nut, Internally Threaded
These standard-use eye nuts screw onto metric threaded application for lifting, attaching cables and carrying smaller work loads.
Made from Stainless Steel for Corrosion Resistance
These eye nuts are not considered true DIN 582 specification because they are cast formed and not drop forged.
