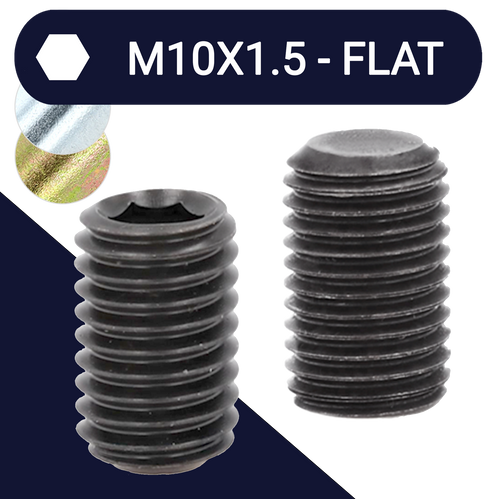

M10X1.5 COARSE THREAD Flat Point Allen Set Screw
For use in compression only, not for tensile or shear loads. Set screws can be used as an easy-to-install alternative to full thread studs because they have an internal allen socket drive at one end for compression use only.. Commonly used in automotive and industrial machinery applications.
Flat point set screws have a flat end that will not damage the contact surface material, offering superior resistance to wear. The flat point design makes these set screws easy to adjust, seating it flush with or below the work surface after installation.
Measured by overall length, an allen socket hex drive is used to tighten this set screw.
Finish
Zinc Plated and Yellow Zinc Plated finishes provide corrosion resistance without sacrificing strength. Black oxide provides minimal corrosion resistance, best for dry environments.
Alternate Specification
ISO 4026
Also known as an allen drive type set screw with flat point, blind screw, fully threaded internal drive headless allen fastener.
