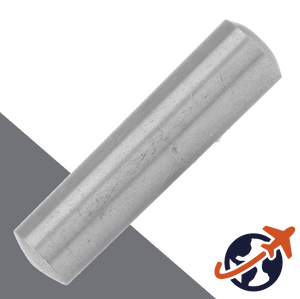

M13 Taper Dowel Pin, Tolerance h10 - Steel DIN 1
Solid press fit cylindrical pin with uniform taper the entire length.
Intended for applications that require easy assembly and disassembly of parts without creating a permanent bond, making it useful in applications where components need to be regularly changed, maintained, or replaced.
The conical shape allows for efficient assembly and reassembly of a compound, ensuring that it retains its integrity and functionality even after multiple cycles of dissolution and reformation. This can be especially important in applications where durability and precision are critical.
Tolerance:
The standard tolerance zones for ISO fittings each have a designated letter and number. Tolerance zones for the hole have capital letters, while tolerance zones for the shaft side of things have lower case letters.
For M13, h10 indicates that this pin has a tolerance of 0mm to -0.07mm from the nominal diameter.
How to Measure:
To measure a press fit pin, measure the length of the pin (including the chamfers if present) and the diameter of the smaller end.
Material: Steel
