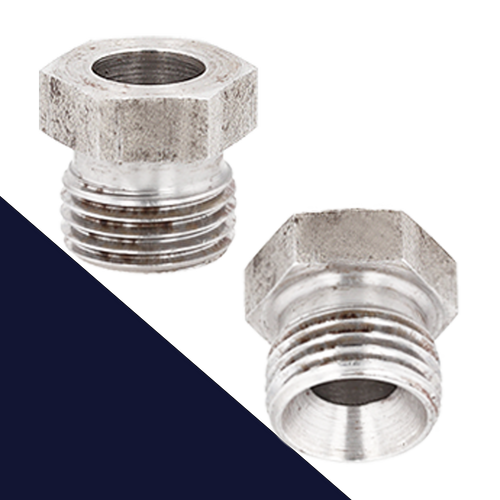

Solder Cone Nipple Hex Fitting
Metric Hex Drive, External Thread Solder Cone Nipple Fitting
To be used with metric pipe that has an outside diameter of 10mm. To be used with a M16x1.5 swivel nut. Fitting can be soldered or brazed.
Internal Flow Diameter: 8mm
Wrench Size: 17mm
Hex Drive Height: 6mm
Overall Fitting Length: 17mm
Fits Swivel Nut Size: M16X1.5Uncoated plain steel construction.
Suitable for mating to a 60 degree fitting or adapter.
To be used in conjunction with the following Cohline Swivel Nut CNPL16x1.5NUT ( 8031 0800 )
Suitable for fuel, oil, air, water. Good for high pressure applications.
COHLINE part # 9050 0800 / 9050.0800Made in Germany.
DIN 7633
