M2 Torx Button Head

ISO 7380-1 TX

A4 Stainless Steel

SKU: 00-Y7380-1TX-A4-M2
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

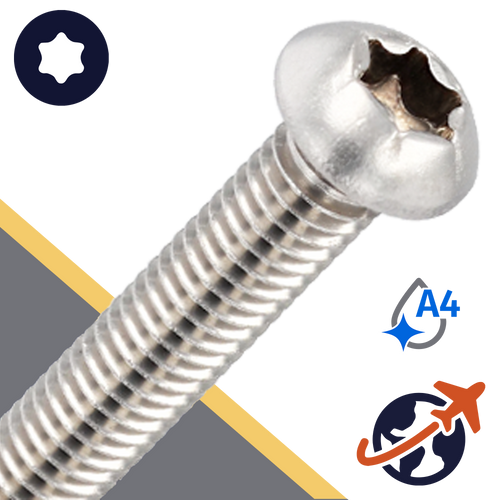

M2X0.4 Torx Button Head Cap Screw - A4 Stainless ISO 7380-1 TX

Torx Drive Button head cap screws are great for limited space installation areas. The slim design of a torx socket wrench allows access to tight locations where a traditional external hex drive bolt would not fit. The smooth head gives a neat, professional finish free from sharp edges, great for furniture and automotive applications.

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Additional benefits include less wear on tools.

Torx drive button head screws are fully threaded, meant to engage with a tapped hole. They can be used with many different styles of locking and non-locking nuts, tightly clamping together whatever the cap screw is being used to secure.

Also known as a rounded head multi-tooth SL-drive machine screw, six lobe torx drive button head socket cap bolt.

Material: A4 / SAE Type 316


A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.


Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, photographic, medical / surgical,  food processing, robotics, architectural detailing, construction, healthcare, sanitary, transportation, clean energy, etc.

Special Order Product Policy

  • Special Order Parts are Available ONLY in Box Quantities
  • Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
  • Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
  • For a full list of Special Order Policies: Please Click Here
