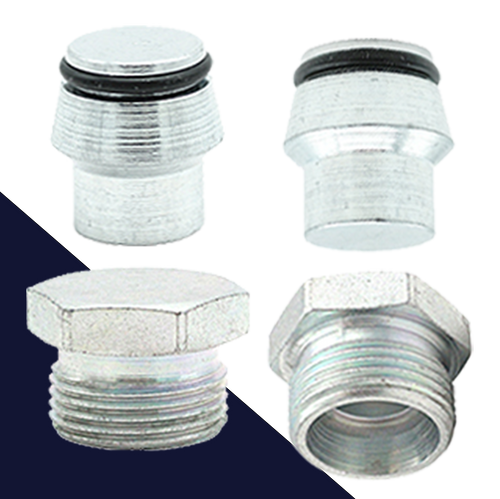

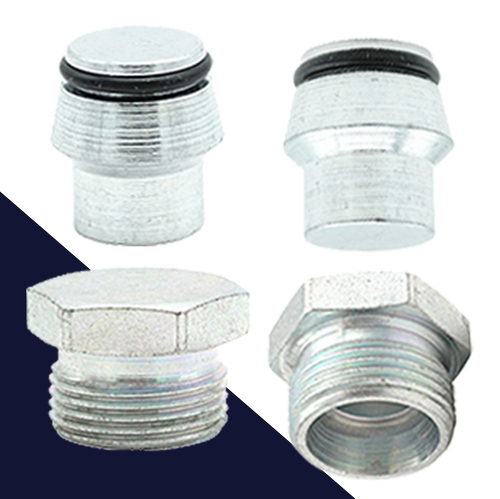

Male + Female Compression Fitting Plugs
Good for high pressure applications.
Male Plug
Use with metal pipe, hard plastic Polyamide hose or hydraulic hose that uses metric DIN "L" or DIN "S" fittings.
This fitting is considered DIN "S" (S12 Metric Compression)
Features a 24 Degree outer cone sealing surface along with a rubber O-Ring to ensure proper sealing. O-Ring is suitable for gasoline, diesel fuel, hydraulic fluid, water, and air.
Thread size of the swivel nut and this plug must match to ensure proper mating/sealing.
Female Plug
Use with metal pipe, hard plastic Polyamide hose or hydraulic hose that uses metric DIN "L" fittings.
This fitting is considered DIN "L" (L10 Metric Compression)
Features a 24 Degree inner cone sealing surface.
Thread size of the swivel nut and this plug must match to ensure proper mating/sealing.
Material
Steel, One-Piece Construction
Finish
Zinc Plated
