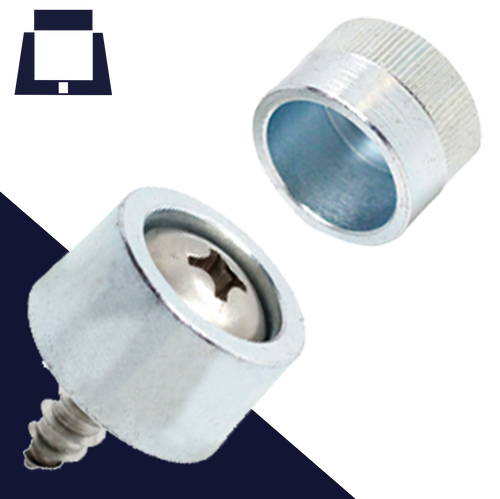

Metric NoGo Tamper Proof Two-Part Enclosed Security Nut
*Hammer-On Design, No Special Tooling Needed*
NoGo Nuts offer the best possibly security for bolts and screws because the entire head of the bolt or screw is fully enclosed after installation. Access to the enclosed fastener is all but impossible after the cap is hammered into the base.
NoGo nuts are a patent protected design, pricing is per two-part nut.
5mm Bolts & Screws
*Will accommodate any 5mm fastener with head diameter of 9mm or less*
Pitch: Coarse or Fine
Exterior Post Installation (Finish) Capsule Dimensions:
Top Diameter: 18.0mm
Bottom Diameter: 19.8mm
Overall height: 12.0mm
6mm Bolts & Screws
*Will accommodate any 6mm fastener with head diameter of 11.5mm or less*
Exterior Post Installation (Finish) Capsule Dimensions:
Top Diameter: 20.3mm
Bottom Diameter: 21.5mm
Overall height: 13.0mm
8mm Bolts & Screws
*Will accommodate any 8mm fastener with head diameter of 19.8mm or less*
Exterior Post Installation (Finish) Capsule Dimensions:
Top Diameter: 25.7mm
Bottom Diameter: 28.4mm
Overall height: 14.0mm
*Hammer-On Design, No Special Tooling Needed*
NoGo Nuts offer the best possibly security for bolts and screws because the entire head of the bolt or screw is fully enclosed after installation. Access to the enclosed fastener is all but impossible after the cap is hammered into the base.
NoGo nuts are a patent protected design, pricing is per two-part nut.
5mm Bolts & Screws
*Will accommodate any 5mm fastener with head diameter of 9mm or less*
Pitch: Coarse or Fine
Exterior Post Installation (Finish) Capsule Dimensions:
Top Diameter: 18.0mm
Bottom Diameter: 19.8mm
Overall height: 12.0mm
6mm Bolts & Screws
*Will accommodate any 6mm fastener with head diameter of 11.5mm or less*
Exterior Post Installation (Finish) Capsule Dimensions:
Top Diameter: 20.3mm
Bottom Diameter: 21.5mm
Overall height: 13.0mm
8mm Bolts & Screws
*Will accommodate any 8mm fastener with head diameter of 19.8mm or less*
Exterior Post Installation (Finish) Capsule Dimensions:
Top Diameter: 25.7mm
Bottom Diameter: 28.4mm
Overall height: 14.0mm
