Detail & Specs
This configuration is not available. Make another selection.

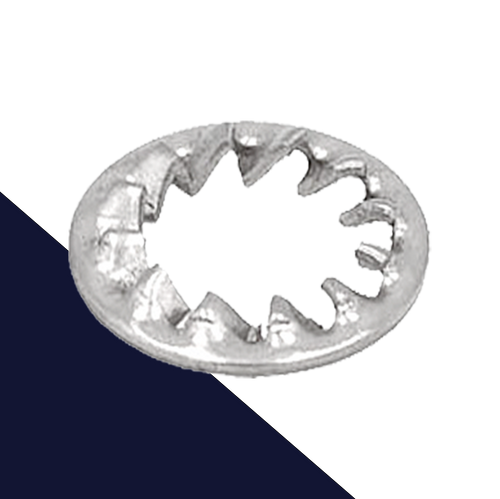

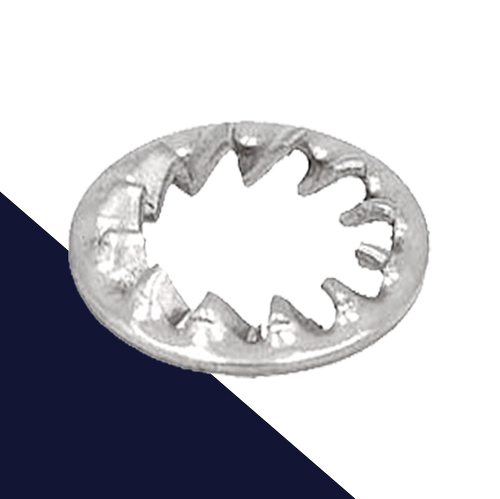

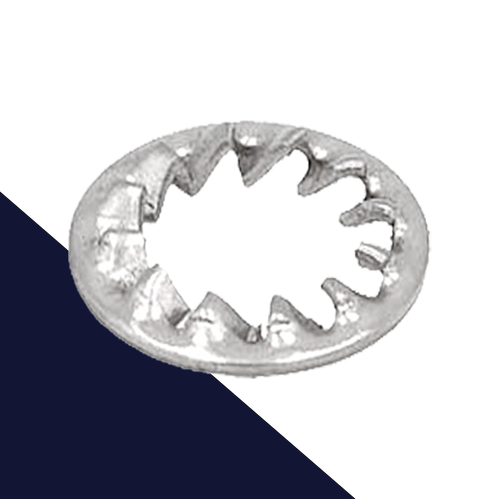

Metric Stainless Steel INTERNAL SERRATED Star Lock Washer
The aggressive internal serrations of this washer bite into the head of the screw or bolt as well as the mating surface for a strong, locked connection resistant to vibration. Serrated Star Washers provide a stronger hold than Toothed Star Washers because the serrations dig deeper into the connecting fasteners.
Internal star washers have a smooth outer surface that will not catch or snag nearby items. The best fasteners to use with these washers have smaller heads such as JIS machine screws, cheese head screws, etc.
Specification
DIN 6798-J / 6798-I, Type J / I Internal Serrations
"J or I" type indicates a serrated inner diameter
Stainless steel star washers are commonly used in damp environments. They are popular across a wide range of industries: automotive, agriculture, architectural, sanitation, food processing, clean energy, etc.
For any application involving marine (salt water), use A4 / 316 Stainless Steel washers.
Also known as serrated lock washer, tight-grip internal-serration lock washers
Special Order Variations
Additional Sizes: M2, M2.5, M3, M3.5, M4, M12, M14, M16, M18, M20, M22, M24, M27, M30
Additional Materials: A4 / 316 Stainless Steel
