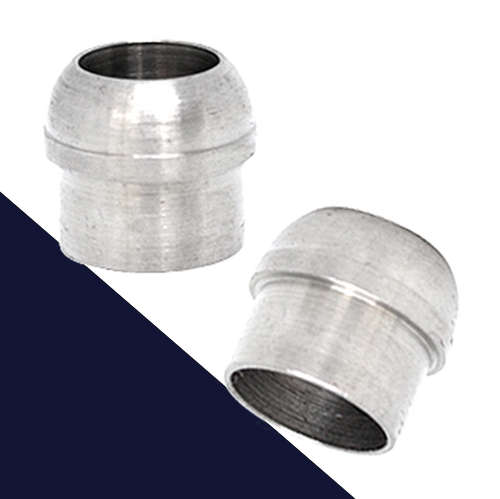

Metric Solder Cone Nipple Fitting, COHLINE Series 9010
Use with metric pipe, sized by outer diameter of the pipe.
Suitable for fuel, oil, air, water. Good for high pressure applications.
Fabrication
Fitting can be soldered or brazed.
Mates to either a 24 degree or 60 degree female fitting or adapter.
To be used in conjunction with the following Cohline Swivel Nut Series #8031
Each Tube Diameter pairs with one swivel nut size:
6mm Tube / M12X1.5 Swivel Nut
8mm Tube / M14X1.5 Swivel Nut
10mm Tube / M16X1.5 Swivel Nut
12mm Tube / M18X1.5 Swivel Nut
18mm Tube / M26X1.5 Swivel Nut
Material: Steel
Finish: Plain, Uncoated
DIN 3863
Made in Germany
