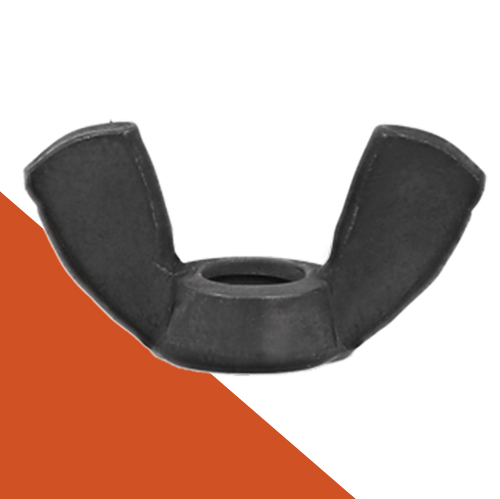

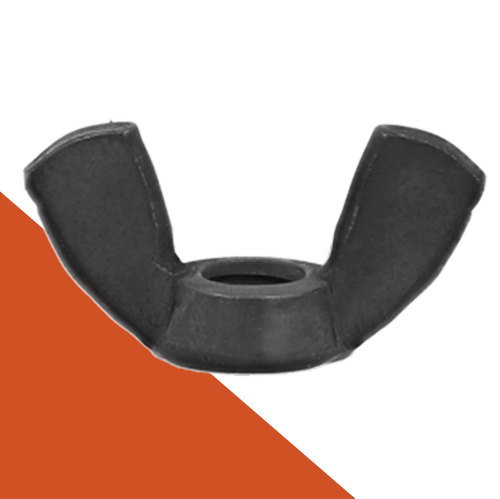

NW6AMERBLKSS - Wing Nut American Style Stainless Black
M6x1, M6x1.00, M6
Wing style nuts allow for greater leverage when tightening. Wing nuts are often used for assemblies which are put together or taken apart by hand, only finger pressure is required to tighten and loosen the nut.
Diameter: 6mm
Pitch: 1.0 Coarse Thread
Base Diameter Max: 11.9mm
Height Max: 12.9mm
Wing Span Max (Overall Width): 27.0mm
Wing Thickness: 3.0mm
Material: Stainless Steel
Suitable for damp locations
Corrosion resistant
Finish: Black Oxide
- Abrasion resistant, does not peel, chip or rub off
- Reduces friction, prevents galling
- Does not change the strength of the stainless steel
- Practically no dimensional change to base fastener
- The spray applied during the coating process wears off over time, revealing an attractive matte black finish
The black oxide coating per MIL-DTL-13924, Class 4 on 300 series corrosion resistant steel meets 96 hours of resistance in a 5% salt spray (fog) test in accordance with ASTM B117. We recommend using stainless steel installation tools to prevent extraneous rust.
Special Bulk Order Variations: M3X0.5, M4X0.7, M5X0.8, M8X1.25, M10X1.5, M12X1.75, M14X2.0
