M10X1.25 Fine Torx Stud

Steel Class 8.8 Zinc

Special Double End

Buy in bulk & save
Select options above to see pricing.
$3.84

This configuration is not available. Make another selection.

SKU: 00-S-10X1.25-Torx-Z

Detail & Specs

This configuration is not available. Make another selection.

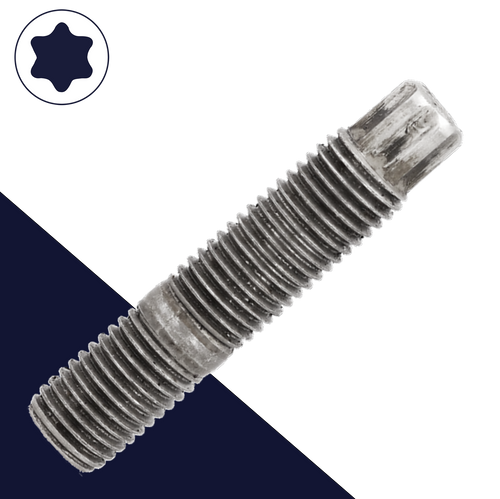

Metric M10X1.25 / FINE THREAD Torx Drive Stud
An external Torx drive / TX E10 torx socket is used to install these studs.

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. For torx drive studs, there is an external torx socket at on the longer thread length end. Both sides of the stud are right hand thread.

Lengths shown are overall.

M10X1.25 studs are commonly used on Honda, Nissan and Toyota Exhaust Systems

Material
Class 8.8 metric studs provide a medium strength, high tensile fastening solution. Pair with Class 8 or stronger nuts.

Finish
Plain, Uncoated Steel

Also known as threaded pin, tap end stud bolt, externally machine threaded headless fastener
