M10X1.25 Fine Stud

Steel Class 8.8

Special Double End

SKU: 00-S-10X1.25-Fine-Z
Buy in bulk & save
Select options above to see pricing.
$1.15

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

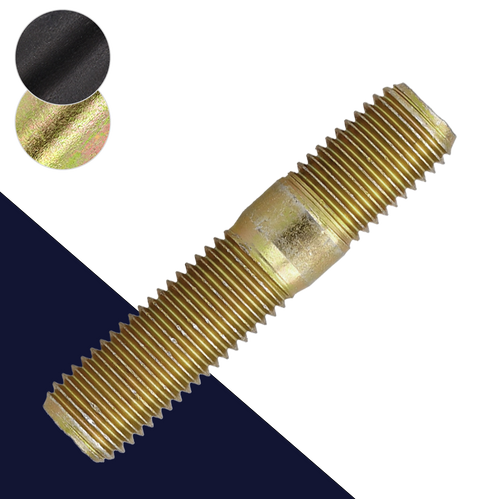

Metric M10X1.25 / FINE THREAD Stud

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.

Full thread studs are threaded the entire length, similar to a piece of threaded rod or "all-thread". Right hand threaded, both ends can accept a nut or installation into a tapped hole.

Lengths shown are overall.

M10X1.25 studs are commonly used on Honda, Nissan and Toyota Exhaust Systems

Material

Class 8.8 metric studs provide a medium strength, high tensile fastening solution. Pair with Class 8 or stronger nuts.

Finish

Yellow Zinc Plated finish provides corrosion resistance without sacrificing strength. Black oxide provides minimal corrosion resistance, best for dry environments.

Also known as threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastener

Watch our video about the stud installation tool here
