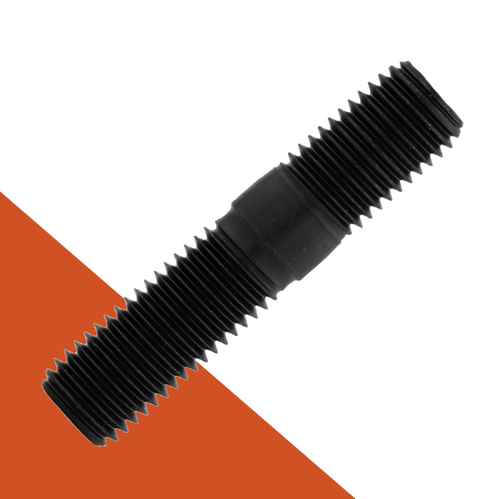

Metric DIN 835 Double Ended Stud / Black Stainless Steel
Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.
Lengths shown are overall. Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.
Material: Stainless Steel
Suitable for damp locations
Corrosion resistant
Finish: Black Oxide
Attractive matte black finish
Abrasion resistant, does not peel, chip or rub off
Reduces friction, prevents galling
Does not change the strength of the stainless steel
Practically no dimensional change to base fastener
The black oxide coating per MIL-DTL-13924, Class 4 on 300 series corrosion resistant steel meets 96 hours of resistance in a 5% salt spray (fog) test in accordance with ASTM B117. We recommend using stainless steel installation tools to prevent extraneous rust.
Stainless studs are commonly used in damp environments for corrosion resistance, popular across a wide range of industries: automotive, motorsport, industrial machinery, architectural finish work, agriculture, food processing, clean energy, etc.
