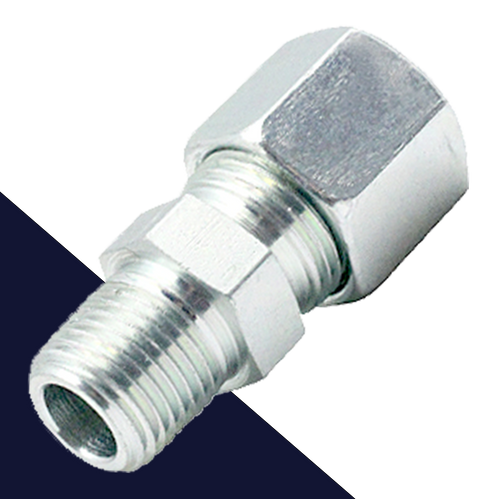

Metric Compression to NPT Male Thread
To be used with a metal pipe, sized by the outer diameter. Good for high pressure applications.
Can also be used with Polyamide Hard Plastic Hose but a supporting sleeve must be inserted to prevent the hose from collapsing.
Complete Set, Includes the Following:
NPT fitting
1 Swivel nut
1 Ferrule
Compression Side of Fitting
Features a 24 Degree inner cone sealing surface
BelMetric cone nipple fittings can be used with the compression side. The proper sized swivel nut and cone nipple fitting is sized by the thread dimension.
This fitting is considered DIN "L"
Material: Steel
Finish: Zinc Plated
