Eye Terminal Crimp + Shrink

22-18 to 12-10 Gauge

Polyolefin

SKU: 00-Eye-Crimp-Shrink
Buy in bulk & save
Select options above to see pricing.
$0.84

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

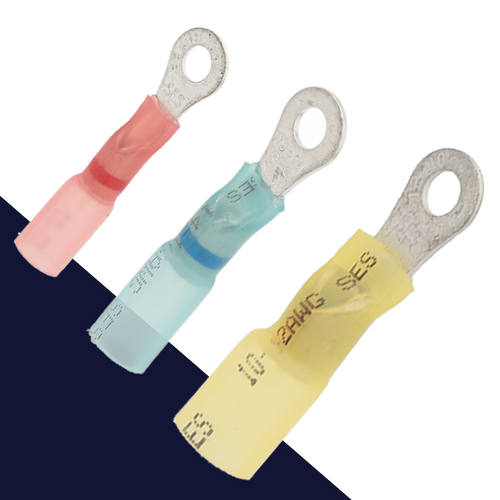

Eye Sealed Crimp and Shrink

Features a translucent, adhesive-lined Polyolefin tubing that seals against dirt, debris and moisture.

Connection becomes water tight to prevent corrosion.

Shrink ratio: 3 to 1

Connector allows for visual inspection of proper wire insertion before crimping.

Colored belly band indicates where the connector is to be crimped.

Temperature to facilitate shrinking of Polyolefin: 275F

UL Voltage rating: 600 Volts

Environment operating temperature range: -67F to 221F

Conforms to automotive and industrial manufactures specifications for wiring repairs.

Product is RoHs Compliant.

For best results: Use heat device of at least 1000F. Don't overheat tubing. Don't isolate flame. Distribute heat evenly over tubing.
