Banjo Eye Union

24 Degree Cone Seal

High Pressure Apps

Buy in bulk & save
Select options above to see pricing.

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

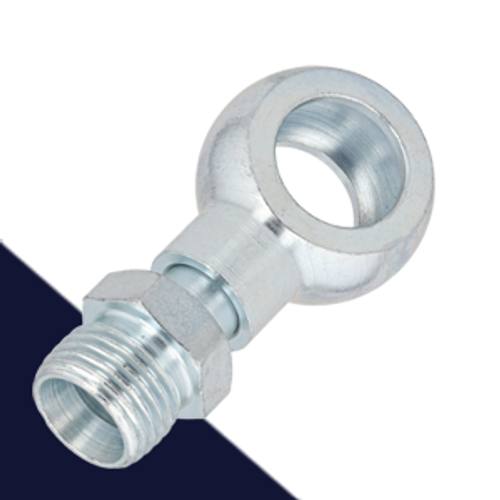

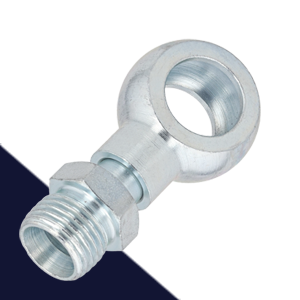

Metric Banjo Eye to Metric Compression Fitting

To be used with a metal pipe, (sized by the outer diameter of the pipe). Can also be used with Polyamide hard plastic hose but a supporting sleeve must be inserted to prevent the hose from collapsing.

Features a 24 Degree inner cone sealing surface.

Select by Eye Diameter (match to mating banjo bolt diameter) or Compression Size

Bel-Metric cone nipple fittings can be used with this compression union. The proper sized swivel nut and cone nipple fitting is sized by the thread diameter and pitch dimensions.

Good for High Pressure Applications

Max pressure for joining metal pipe: 3600 PSI

Fitting is considered DIN "L" (L10 Metric Compression)

Material: Steel, One-Piece Construction

Finish: Zinc Plated

View All Gaskets Here
