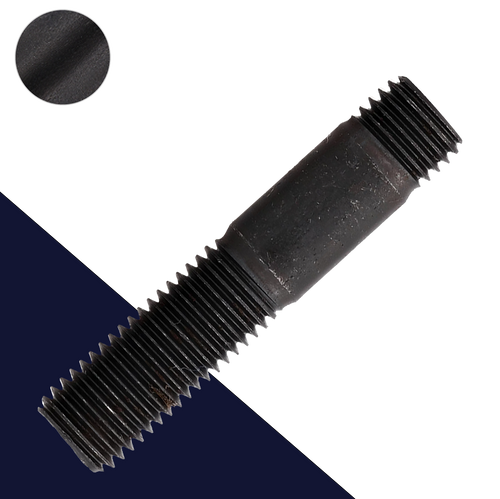

Metric DIN 938 Double Ended Stud
Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.
Lengths shown are overall. Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.
Material
Class 8.8 metric studs provide a medium strength, high tensile fastening solution. Pair with Class 8 or stronger nuts.
Finish
Zinc Plated and Yellow Zinc Plated finishes provide corrosion resistance without sacrificing strength. A black oxide finish provides minimal corrosion resistance, best for indoor, dry environments. This finish is not suitable for outdoor applications, and will rust when exposed to moisture.
Also known as threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastener
Watch our video about the stud installation tool here
