M10 to M12

Class 10.9 Steel

Hardened Stepped Stud

SKU: 00-SH-Step10-12-Z
Buy in bulk & save
Select options above to see pricing.

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

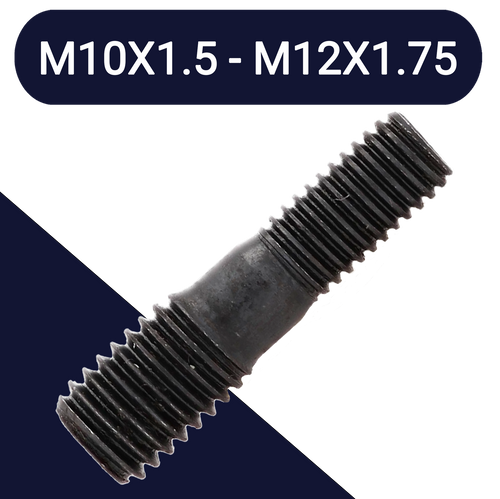

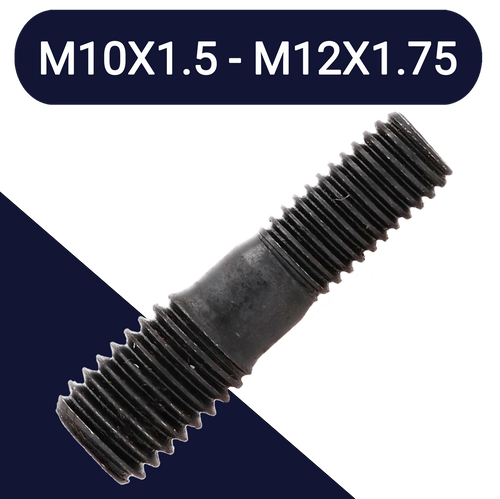

Metric Step-Down Stud / Double Ended M10X1.5 to M12X1.75

These studs step up from 10mm diameter threading on one side to 12mm threading on the other side.

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end.

Both sides are right hand threaded and can accept a nut or installation into a tapped hole. Lengths shown are overall.

Material Class 10.9 metric studs provide a medium strength, high tensile fastening solution.

Pair with Class 10 or stronger nuts. Also known as threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastener
