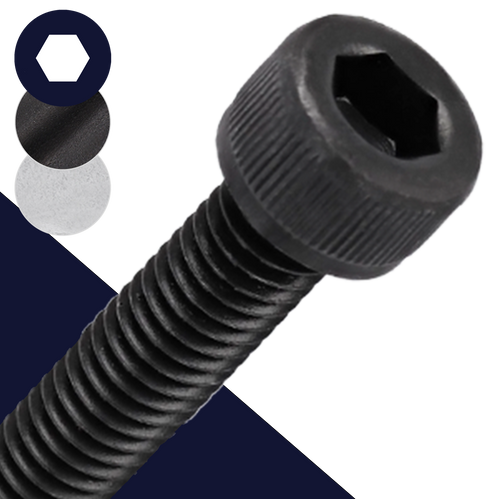

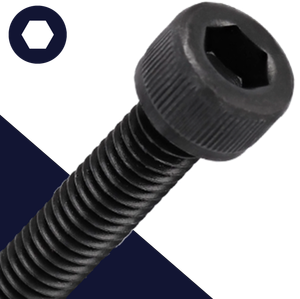

What are DIN 912 Socket Head Cap Screws?
DIN 912 socket head cap screws are metric fasteners featuring a cylindrical head and an internal hex drive, also known as an Allen drive. They are designed for installation with a matching hex key or Allen bit and are commonly used in tapped holes where a strong, compact fastening solution is required.
DIN 912 is the legacy German standard, with ISO 4762 serving as its international successor. Although DIN 912 remains widely used in product listings, engineering drawings, and purchasing specifications, ISO 4762 is the current international reference for standard coarse-thread hexagon socket head cap screws. The standards describe the same basic fastener type, but specific dimensions and requirements should be checked when substituting one for the other.
What material and finishes are available for DIN 912 Socket Head Cap Screws?

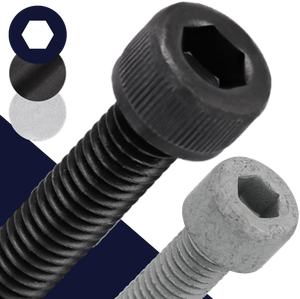

These socket head cap screws are manufactured from Class 12.9 high-strength steel, offering high tensile strength and hardness for demanding mechanical fastening applications. They are available with two different finishes: black oxide and zinc flake.
Black oxide is a common finish that creates a dark, low-reflectivity surface and provides limited corrosion protection. Zinc flake is a corrosion-resistant surface treatment that uses a protective layer of zinc and aluminum flakes, typically applied with a binder and cured to form a thin protective coating. The specified zinc flake system is designed to provide 480 hours of corrosion resistance in a neutral salt spray test, making it a suitable option for applications requiring enhanced corrosion protection.
Why choose Class 12.9 DIN 912 Socket Head Cap Screws?
Class 12.9 steel socket head cap screws are a popular choice for high-strength fastening in machinery, equipment, and mechanical assemblies. Their internal hex drive allows for effective tightening in compact spaces, while the high-strength steel construction supports demanding load requirements when the screw is properly selected and installed.
Choosing the appropriate finish is also important. Black oxide is a common choice for general machinery and tooling, while zinc flake is often preferred where greater corrosion resistance is needed. The zinc flake finish provides an alternative to conventional black oxide and is particularly useful for applications with specific corrosion-protection requirements.
Where are DIN 912 Socket Head Cap Screws with Black Oxide and Zinc Flake Finishes commonly used?
Black oxide DIN 912 socket head cap screws are commonly used in machine tools, industrial machinery, fixtures, jigs, tooling, automation equipment, and general mechanical assemblies where a dark finish is preferred and additional corrosion protection is not required.
Zinc flake DIN 912 / ISO 4762 socket head cap screws are increasingly common in automotive applications, including vehicle assemblies, chassis systems, engine-related components, and other automotive equipment where enhanced corrosion protection is important. Zinc flake finishes are also used in industrial machinery and equipment exposed to more demanding environments.
The choice between finishes depends on the application's corrosion requirements, operating conditions, and any specifications established by the equipment manufacturer.
