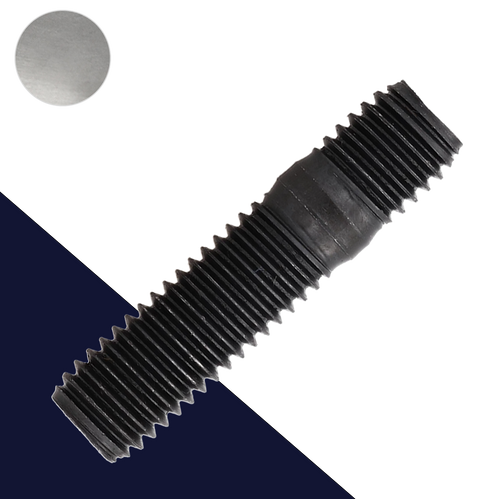

M14 Double End Stud

Steel Class 5.8 Plain

DIN 939

SKU: 00-S-14X2.0 DIN939
$4.52

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

Metric DIN 939 Double Ended Stud

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.

Lengths shown are overall. Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.

Material

Class 5.8 steel is a low to medium strength carbon steel for light duty applications

Finish

Zinc Plated and Yellow Zinc Plated finishes provide corrosion resistance without sacrificing strength. Black oxide provides minimal corrosion resistance, best for dry environments.

Also known as threaded pin, tap end stud bolt, externally machine threaded headless fastener
