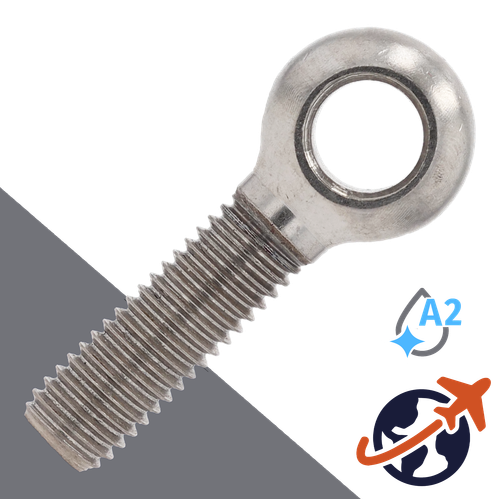

What is a DIN 444 A2 Stainless Eye Bolt?
DIN 444 eye bolts are metric machine-threaded eye bolts featuring a formed eye at one end for attaching cables, wires, ropes, hooks, and other hardware. DIN 444 includes different shank configurations to accommodate different fastening requirements. Type B features a partial thread, while Type LB features a full-length thread, allowing the same eye bolt style to be used across a variety of mounting applications.
The eye provides a convenient attachment point while the metric machine thread allows the eye bolt to be installed into tapped holes or used with compatible metric nuts. Type B partial-thread eye bolts are useful where a specific unthreaded shank length is required, while Type LB full-thread eye bolts provide maximum threading flexibility and adjustment. They are also known as metric eye bolts, lifting eye bolts, ring eye bolts, and eyelet bolts.
What material are DIN 444 A2 Stainless Eye Bolts made from?
These DIN 444 eye bolts are manufactured from A2 stainless steel, providing excellent corrosion resistance together with dependable mechanical performance for general-purpose fastening applications. A2 stainless steel performs well in humid and mildly corrosive environments while resisting rust and oxidation.
The natural stainless steel finish provides long-term durability and a clean, professional appearance without requiring an additional protective coating. A2 stainless steel is a practical choice for indoor and outdoor applications where moderate corrosion resistance is required.
What is the difference between DIN 444 Type B and Type LB Eye Bolts?
DIN 444 Type B eye bolts have a partial thread, leaving a portion of the shank unthreaded below the eye. This configuration can be useful when the eye bolt needs to bear against or pass through a component before the threaded portion engages.
DIN 444 Type LB eye bolts have a full-length thread, providing greater flexibility when determining the installed depth or when the eye bolt needs to be secured through varying material thicknesses. Both configurations use the same general DIN 444 eye bolt design, but the different thread lengths allow them to be selected according to the specific assembly requirements.
Where are DIN 444 A2 Stainless Eye Bolts commonly used?
DIN 444 A2 stainless eye bolts are commonly used in machinery, equipment frames, agricultural equipment, electrical equipment, automation systems, robotics, cable management, lighting equipment, architectural hardware, outdoor structures, marine-adjacent applications, and general OEM manufacturing.
Type B and Type LB eye bolts are particularly useful for attaching cables, retaining wires, securing covers, routing lines, creating attachment points, and connecting components where a metric threaded eye is required. A2 stainless steel makes them well suited for general outdoor and moderately corrosive environments.
Included SKUs:
