M3 Torx Low Socket

ISO 14580 TX

A4-50 Stainless Steel

SKU: 00-Y14580-A4-M3
Minimum Box: Select a valid option

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

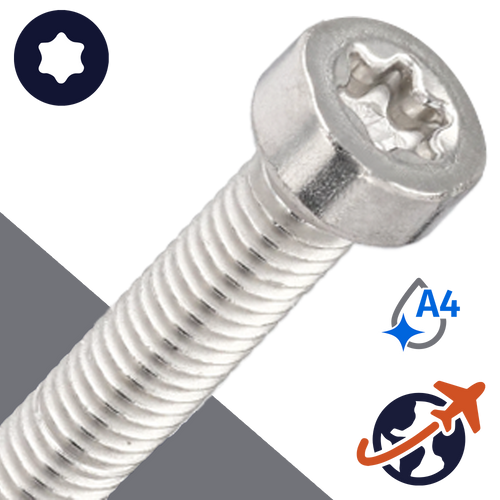

M3X0.5 Torx Low Socket Head Screw - A4 Stainless ISO 14580

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive.

Additional benefits include less wear on tools and no damage to the stainless steel surface coating.

Low Profile TX drive socket head bolts are designed to be used in tight work areas where a reduced head height is required, allowing access into spaces where a traditional external hex drive bolt would not fit.

Also known as SL-Recess low head torx socket cap screw or six-lobe torx socket, inner multi-tooth socket cap screw.

Material: A4 / SAE Type 316

A4 / 316 Stainless Steel fasteners are "marine grade" corrosion resistant; suitable for salt water applications. A4 fasteners also offer increased resistance to chemicals when compared with A2 stainless fasteners.

Commonly used in wet environments. Popular across a wide range of industries: automotive, agriculture, photographic, medical / surgical,  food processing, clean energy, etc.
