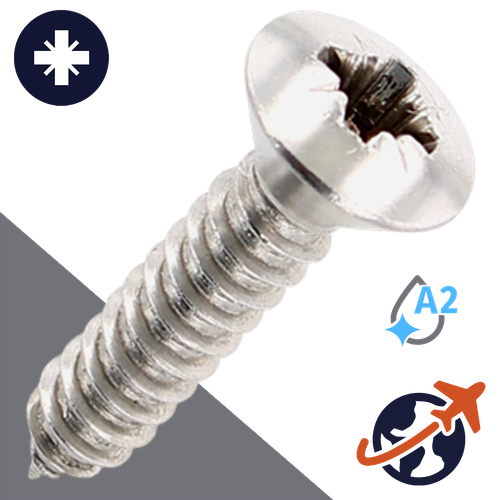

What is a DIN 7983-C A2 Stainless Pozidrive Oval Head Tapping Screw?
DIN 7983-C tapping screws are metric self-tapping screws featuring a raised countersunk (oval) head, Pozidrive recess, and a Form C cone point. The raised countersunk head combines a 90° countersunk underside with a slightly domed top, allowing the screw to seat in a countersunk hole while leaving an attractive rounded profile above the surface. The Form C cone point is designed to start easily in a pre-drilled hole while forming its own mating threads in sheet metal, plastics, and other suitable materials. Unlike machine screws,
DIN 7983-C tapping screws are intended for use in untapped materials and should not be used with machine thread nuts or tapped holes. DIN 7983-C has been superseded by ISO 7051, although the DIN designation remains widely recognized throughout industry. They are also known as Pozidrive oval head sheet metal screws, raised countersunk tapping screws, raised head self-tapping screws, oval head sheet metal screws, and ISO 7051 tapping screws.
What material is a DIN 7983-C A2 Pozidrive tapping screw made from?
DIN 7983-C screws are manufactured from A2 stainless steel, providing excellent corrosion resistance together with dependable mechanical strength for general-purpose fastening applications. A2 stainless steel performs well in humid and mildly corrosive environments while resisting rust and oxidation.
The natural stainless finish offers long-term durability, an attractive appearance, and minimal maintenance, making these screws suitable for both indoor and outdoor use. The Pozidrive recess provides improved torque transfer and greater resistance to cam-out than a Phillips drive, allowing for more secure installation, higher tightening torque, and longer driver life.
Why choose an A2 stainless DIN 7983-C Pozidrive tapping screw?
A2 stainless DIN 7983-C screws offer an excellent balance of corrosion resistance, installation efficiency, and finished appearance. The Form C cone point starts easily in pre-drilled holes and forms its own mating threads during installation, eliminating the need for pre-tapped holes and reducing assembly time.
The Pozidrive drive provides higher torque capacity and improved driver engagement compared to a Phillips drive, while the raised countersunk (oval) head produces a clean, decorative finished appearance that is ideal where the fastener remains visible.
Where are DIN 7983-C A2 stainless Pozidrive tapping screws commonly used?
DIN 7983-C A2 stainless Pozidrive raised countersunk tapping screws are widely used in sheet metal fabrication, electrical enclosures, HVAC equipment, automotive components, appliance manufacturing, architectural hardware, control panels, transportation equipment, machinery, electronics, and general industrial assemblies.
Their combination of excellent corrosion resistance, Form C cone point, self-tapping thread, raised countersunk head, and high-performance Pozidrive drive makes them a popular choice for OEM manufacturing, maintenance, repair, and precision assembly where both appearance and reliable fastening performance are important.
