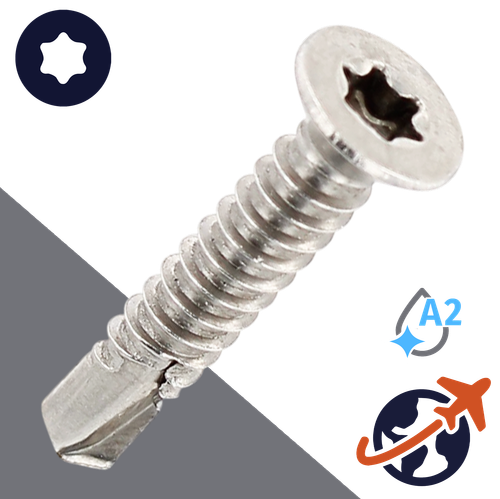

What are DIN 7504 Type "O" A2 Stainless Steel Flat Head Torx Self-Drilling Screws?
DIN 7504 Type "O" self-drilling screws are metric drill-point screws with a flat, countersunk head and six-lobe Torx drive. The Type "O" configuration features an 80° countersunk head designed to sit flush with the surface of a properly prepared hole, while the drill-shaped point cuts through the material during installation. This allows the screw to drill its own hole in suitable materials, eliminating the need for a separate pilot hole in many applications.
What material are DIN 7504 Type "O" A2 Stainless Steel Screws made from?
These self-drilling screws are manufactured from A2 stainless steel, providing good general corrosion resistance for industrial, automotive, construction, outdoor, and mechanical applications. A2 stainless steel is a versatile choice where the fastening system may be exposed to moisture, humidity, and normal outdoor conditions.
Why choose DIN 7504 Type "O" Flat Head Torx Self-Drilling Screws?
The combination of a self-drilling point, flush countersunk head, and six-lobe Torx drive makes these screws an efficient solution for fastening applications where installation speed and a clean finished surface are important. The drill point can penetrate suitable sheet metal without a separately drilled pilot hole, while the six-lobe drive provides strong driver engagement and efficient torque transfer.
The flat head sits flush when installed in a properly countersunk surface, creating a low-profile finished assembly.
Where are DIN 7504 Type "O" A2 Stainless Steel Self-Drilling Screws commonly used?
DIN 7504 Type "O" A2 stainless steel flat head Torx self-drilling screws are commonly used in sheet metal fabrication, light gauge metal assembly, HVAC equipment, electrical enclosures, control cabinets, machinery, automotive manufacturing, vehicle assembly, industrial equipment, appliances, automation systems, robotics, electronics, and general fabrication.
They are also useful for fastening metal panels, brackets, covers, guards, housings, cabinets, access plates, trim components, and equipment frames where a flush-mounted self-drilling screw is preferred. These screws can also be used with wood, timber, engineered wood, composite wood, hardwood, and some plastics, depending on the material and application.
A2 stainless steel makes them a practical choice for outdoor equipment, agricultural machinery, trailers, recreational equipment, architectural hardware, commercial equipment, maintenance, repair, and OEM production where general corrosion resistance is required.
