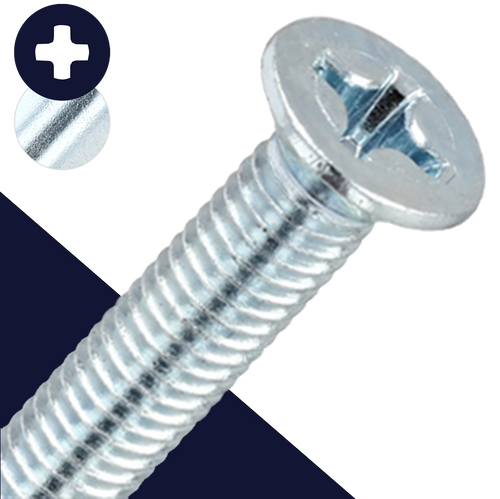

Retired JIS Flat Head Extra Coarse Zinc - M5X0.9X30, M5X.9X30
Metric EXTRA COARSE Phillips Flat Head Machine Screw
Diameter: 5mm
Thread Pitch: 0.9
Overall Length: 30mm
Head Diameter: 10mm
Head Height: 2.8mm
Drive: Phillips Size 2, PH-2
Material: Class 4.6 Steel
Finish: Zinc Plated
RETIRED JIS Standard (1960s and Prior) **Please double check your thread pitch prior to ordering.**
The industry wide manufacturing specification used today for M5 JIS and DIN hardware is M5X0.8 coarse threading. This M5 screw is threaded to the 0.9mm extra coarse pitch and will only thread into a nut measuring M5X0.9. Phillips flat head machine screws have a 90 degree angle head style in order to sit flush with countersunk holes.
The length of flat head countersunk screws is always measured from the top of the head (overall length).
Also known as countersunk machine screw, cross recessed countersunk screws.
