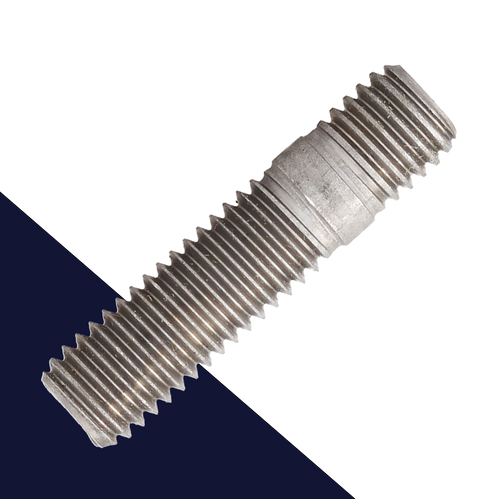

Metric DIN 938 Double Ended Stud / STAINLESS
Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.
Lengths shown are overall. Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.
Material
A2-70 Stainless studs are commonly used in damp environments for corrosion resistance, popular across a wide range of industries: automotive, motorsport, industrial machinery, architectural finish work, agriculture, food processing, clean energy, etc.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material, available as a special order.
Also known as threaded pin, setup stud, tap end stud bolt, externally machine threaded headless fastener
Special Order Variations:
Available Material: A4 Stainless Steel
Additional Diameters: M12, M16, M20, M24
Watch our video about the stud installation tool here.
