M8 Torx Flat Head

Steel 8.8 Zinc Plated

ISO 14581 TX-45

SKU: 00-SF8-TX-Z
Buy in bulk & save
Select options above to see pricing.

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

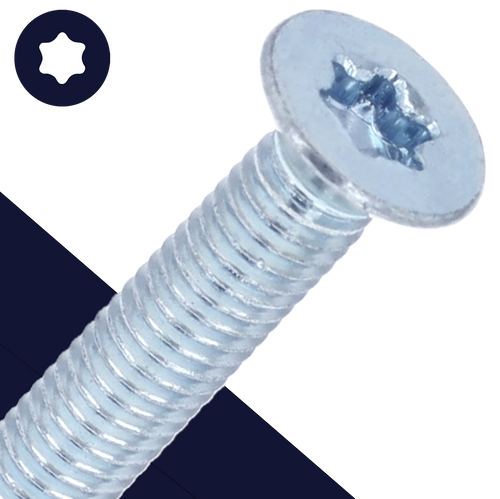

M8X1.25 Metric Torx Socket Flat Head Cap Screw, Class 8.8 Steel

Flat head torx cap screws have a 90 degree angle underneath the head. When installed, the head of this screw is meant to sit flush with the surface of the work in a countersunk hole. Measured by overall length, including the head.

Drive Size: TX-45
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Additional benefits include less wear on tools and no damage to the zinc plated surface coating.

Torx drive flat head screws are fully threaded, meant to engage with a tapped hole. These bolts can be used with many different styles of locking and non-locking nuts, tightly clamping together whatever the cap screw is being used to secure.

Zinc Plated finish provide corrosion resistance without sacrificing strength.

Also known as a countersunk multi-tooth SL-drive machine screw, six lobe drive flat head countersunk socket cap bolt.
