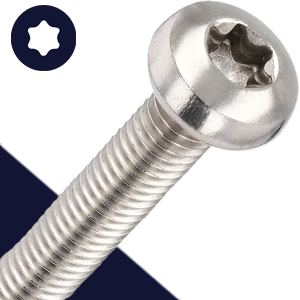

M8X1.25 Torx Pan Head Screw - A2 Stainless ISO 14583
Torx Drive pan head screws have a wide diameter head profile with rounded, chamfered / curved sides and a recessed six-lobe drive.
Machine thread screws can be used in a tapped hole or with a locking / non-locking nut. Length is measured from underneath the head.
Also known as metric hexalobular socket pan head cap screw, raised cheese head torx screw, machine pan head torx drive screw.
A six lobe torx wrench is used to install these screws, allowing access into spaces where a traditional external hex drive bolt would not fit. Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive.
Material: A2 / SAE Type 304
A2 Stainless screws are commonly used in damp environments for corrosion resistance, popular across a wide range of industries: automotive, motorsport, industrial machinery, architectural finish work, agriculture, food processing, clean energy, etc.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material, available as a special order.
