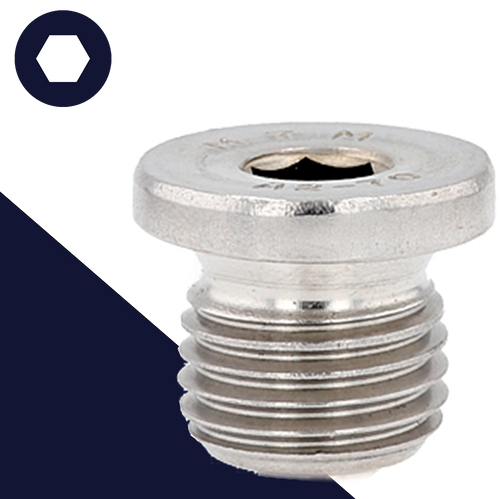

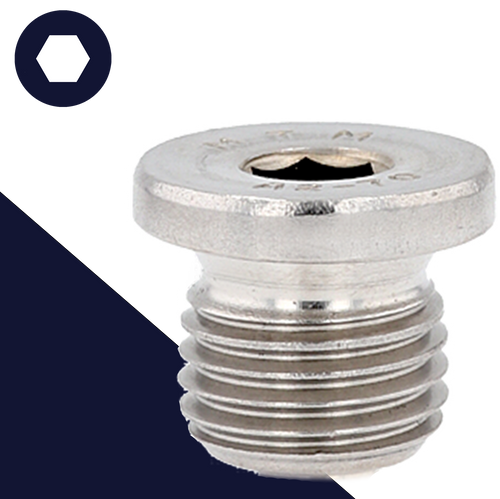

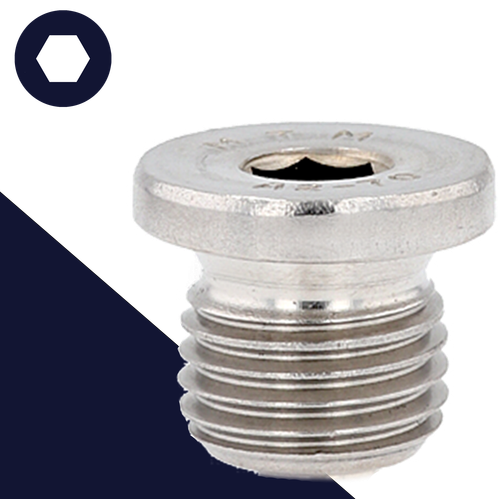

BSPP Allen Socket Head Drain Plug / STAINLESS STEEL
British Standard Pipe Parallel (Straight) Thread: This threading is also commonly referred to as "G" Series British Pipe Parallel, Parallel Fastening Thread, British Gas
Used for plugging parallel thread tapped holes. These drain plugs have a taper under the flange style head to seat a crush or sealing washer. The sealing ring secures the plug against the hole, preventing leakage. An allen wrench is used to install and tighten the plug.
Use with our copper or aluminum gaskets as well as bonded sealing gaskets.
Allen drive plugs are used extensively for commercial, industrial, automotive, boats, sanitary pipes and fittings. Consider using a thread sealant or thread seal tape on the plug prior to installation for an extra secure seal, reducing the possibility of leakage.
Designed to create a tighter seal with higher tightening torques for masking cylindrically threaded holes and are commonly used to seal holes in machinery, fittings or pipes to prevent leakage of air, steam, gases, water, oil and fluids under pressure.
Material
Made of highly durable A2 stainless steel that possesses superior anti-corrosive properties suitable for use in wet environments.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material, available as special order in small bulk quantities.
