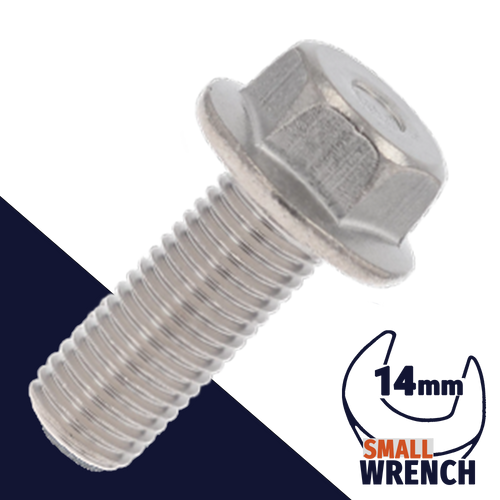

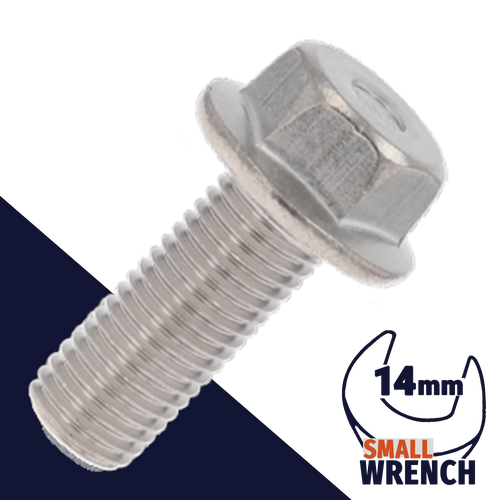

M10X1.25 Fine JIS Flange Bolt

Stainless Steel

JIS B-1189 / 14mm Wrench

SKU: 00-BF10X1.25-SS
Buy in bulk & save
Select options above to see pricing.
$5.25

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

Stainless Steel M10X1.25 JIS B-1189 Metric Flange Bolt EXTRA FINE THREAD

Reduced 14mm wrench size with non-serrated smooth bottom flange.

The underside of the flange surface ensures superior force distribution over a greater area, eliminating the need for a separate washer. To be used with locking or non-locking nuts or in a tapped hole, commonly used on vehicle frames and various automotive applications.

Material

(!) Stainless Steel is not as strong as the more common Class 10.9 Steel version of this bolt (most commonly used on automotive frames / etc)

Stainless Steel is commonly used in damp environments for corrosion resistance, popular across a wide range of industries: automotive, agriculture, food processing, clean energy, etc.

Full Thread
The entire length of a fully threaded flange bolt is meant to engage with a tapped hole.

Also known as
Small wrench Japanese Industrial Standard external hex drive flange bolt, JIS flanged screws with reduced wrench, one-piece flange bolt for mechanical applications, non-serrated flange screw, external hex bolt with integral washer.
