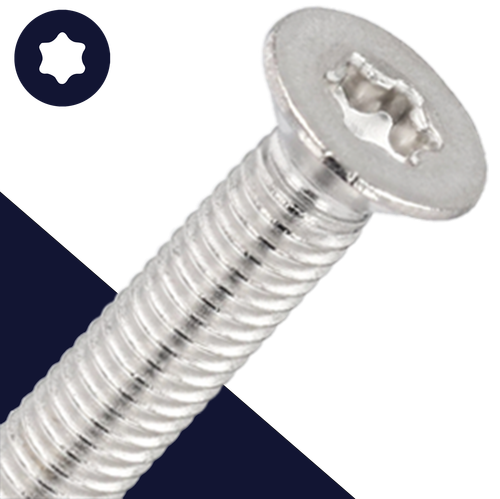

M5 Torx Flat Head

Stainless Steel

ISO 14581 TX-25

Buy in bulk & save
Select options above to see pricing.

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

M5 Metric Torx Socket Flat Head Cap Screw, Stainless

Flat head torx cap screws have a 90 degree angle underneath the head. When installed, the head of this screw is meant to sit flush with the surface of the work in a countersunk hole. Measured by overall length, including the head.

Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive.

Torx drive flat head screws are fully threaded, meant to engage with a tapped hole. These bolts can be used with many different styles of locking and non-locking nuts, tightly clamping together whatever the cap screw is being used to secure.

Commonly used in damp environments for corrosion resistance, stainless steel screws are popular across a wide range of industries: automotive, furniture, architectural components, agriculture, food processing, clean energy, etc. For any application involving marine (salt water), use A4 / 316 Stainless Steel material, available as special order.

Also known as a countersunk multi-tooth SL-drive machine screw, six lobe drive flat head countersunk socket cap bolt.

Alternative Specification
ISO 10642

Special Bulk Order Variations
Additional Lengths: M5X28, M5X45, M5X70, M5X85, M5X95

Additional Materials:
A4 / 316 Stainless Steel
Class 4.8 Steel with Zinc Plating
Class 8.8 Steel with Zinc Plating
