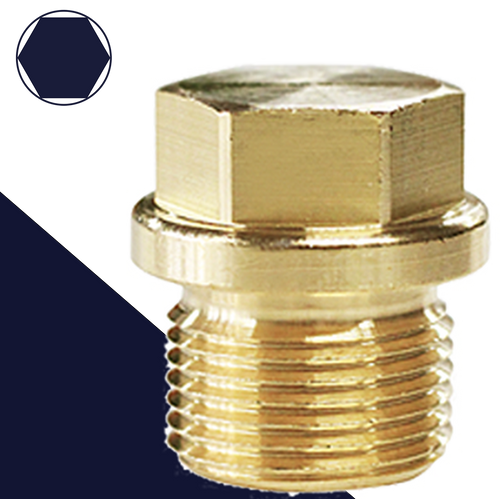

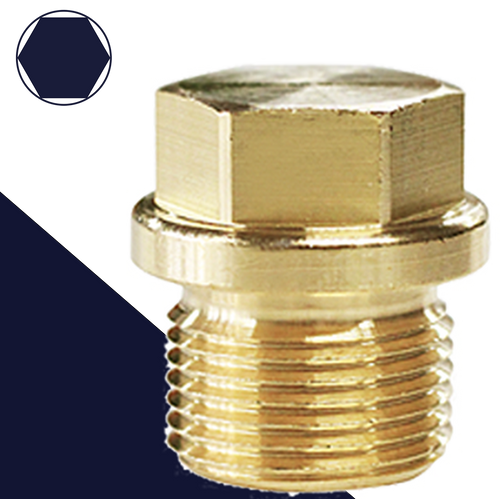

Flanged Hex Drive Plug

Solid Brass

DIN 910

Buy in bulk & save
Select options above to see pricing.
$2.81

This configuration is not available. Make another selection.

SKU: 00-DP-H-BRS

Detail & Specs

This configuration is not available. Make another selection.

Hex Head Drain Plug / BRASS

Used for plugging parallel thread tapped holes. These drain plugs have a taper under the flange style head to seat a crush or sealing washer. The sealing ring secures the plug against the hole, preventing leakage. A wrench is used to install and tighten the plug.

Use with our copper or aluminum gaskets as well as bonded sealing gaskets.

Hex head drive plugs are used extensively for commercial, industrial, automotives, boats, sanitary pipes and fittings. Consider using a thread sealant or thread seal tape on the plug prior to installation for an extra secure seal, reducing the possibility of leakage.


Specification
DIN 910 hex flange screw plugs with collar are ideally used for plugging holes with cylindrical, straight, or parallel threads.

Designed to create a tighter seal with higher tightening torques for masking cylindrically threaded holes and are commonly used to seal holes in machinery, fittings or pipes to prevent leakage of air, steam, gases, water, oil and fluids under pressure.


Material
Made of high quality brass with superior anti-corrosive properties suitable for use in wet environments, these plugs can be extensively used for commercial, industrial, automotives, boats, sanitary pipes and fittings.

Brass is composed of copper and zinc and is popularly used for corrosion resistance. It is nonmagnetic and has high electrical conductivity.

Also known as external hex screw plug with collar, hexagon head pipe plug, also great for blocking off intake manifold water ports, water pump ports, water temp and oil sender holes, and engine block holes.
