M6 + M8 Floating Anchor Nut

Two-Piece Form

Zinc Nickel Plated

Buy in bulk & save
Select options above to see pricing.
$3.98

This configuration is not available. Make another selection.

SKU: 00-NFLOAT-ZNK

Detail & Specs

This configuration is not available. Make another selection.

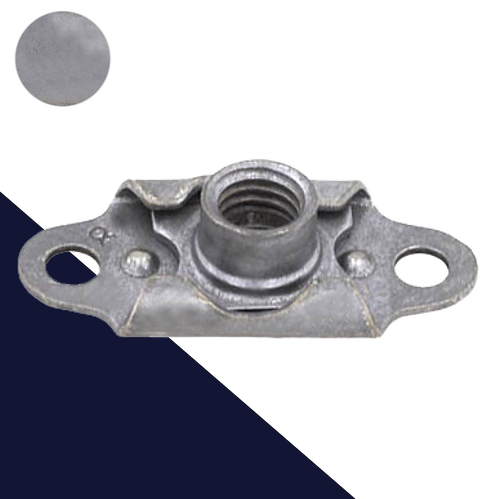

Metric Floating Two Lug Self-Locking Anchor Nut Plate

**sold per piece**


This thin walled, self locking nut plate has a reduced barrel height (low profile) and utilizes two rivets to install a captive nut behind a panel.


M6 + M8 Rivet Measurements

Rivet Size: 3.3mm (1/8")

Rivet Spacing: 22mm

0.75mm Radial float / misalignment allowance


Material

25CrMo4 Alloy Structural Steel, Lightweight!

(Hardened strength, 1100 Mpa, comparable to Metric Class 10.9)

Rockwell HRC 44max


Finish

Zinc-Nickel Plating, Treated with Trivalent Chromium

MoS2 Coating (dry film coating)

Low Friction *helps reduce wear and coefficient of friction

Cadmium Free / Compliant with EU Regulations


Salt Spray: 500 hrs.

Temp Max: 455F


Super light weight, commonly used in Aerospace applications to standards LN 29679. Also known as all floating metal lock nut, many motorsport and automotive applications.
