Low Flanged Allen Socket Plug

Captive Sealing Washer

DIN 908 + Similar

SKU: 00-DP-AH-FKMLOW-Z
Buy in bulk & save
Select options above to see pricing.
$1.84

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

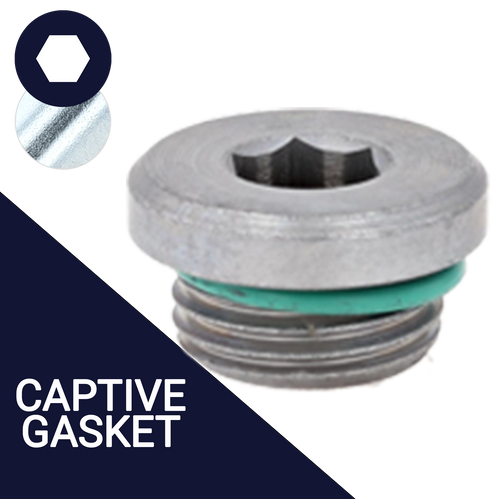

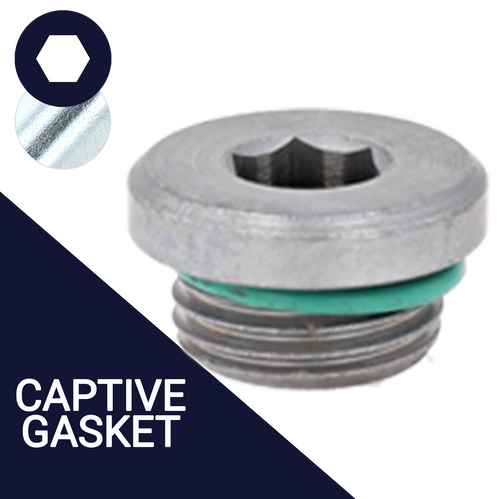

Low Profile Allen Socket Head Drain Plug with Captive Seal

Used for plugging parallel thread tapped holes. These drain plugs are intended for pneumatics or gearbox manufacturing. The drain plugs have a FKM rubber gasket under the flange style head to secure the plug against the hole, preventing leakage. An allen wrench is used to install and tighten the plug.

The seal is fitted into a radial recess at the bottom of the flange, and cannot be lost or squeezed out during installation. These are not one-time use plugs, and can be used multiple times.

Allen drive plugs are used extensively for commercial, industrial, automotive, boats, sanitary pipes and fittings.

Material
Drain Plug: 11SMnPb30+C Steel
Rubber Gasket: FKM 80 Shore -20°C to +200°C (-4°F to +392°F)

Finish
Zinc Plated (A3K/Zn Nano) finish provides corrosion resistance. This finish has a corrosion resistance of 96 hours to white rust and 160 hours to red dust.

Also known as hexagon socket screw plug with collar, hexagon drive pipe plug.
