What are Torx Drive Double End Metric Studs Class 10.9 Steel?

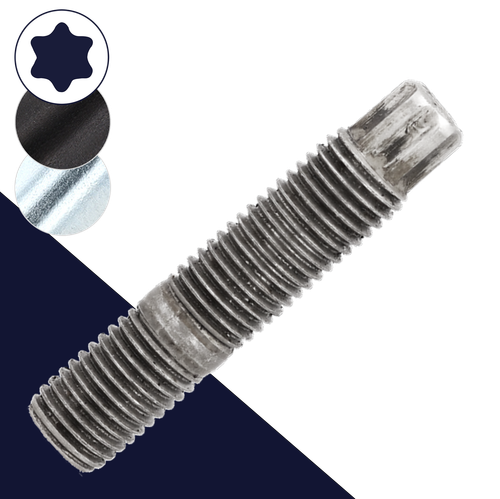

Torx drive double end metric studs are high-strength threaded studs with external metric threads on both ends, an unthreaded center section, and an external Torx drive on one end. The Torx drive is a raised, six-lobe profile that accepts a matching Torx or E-Torx socket, allowing the stud to be installed or removed by applying torque directly to the driven end.
The opposite threaded end provides an attachment point for a metric nut or other component, making these studs useful where a removable threaded connection is needed.
These are special articles that vary dimensionally from the DIN and ISO dimensional standards for double ended studs, including standards such as DIN 938 and DIN 939.
What material and finishes are these Torx Drive Double End Metric Studs available in?
These double end studs are manufactured from hardened Class 10.9 high-strength steel and are available in plain or zinc plated finishes. Class 10.9 steel provides high tensile strength for demanding mechanical fastening applications. The plain finish leaves the steel uncoated and is suitable for dry or protected environments, while the zinc plated finish provides improved resistance to moisture and general atmospheric corrosion.
Why choose Torx Drive Double End Metric Studs Class 10.9 Steel?
The external Torx drive end provides positive engagement with a matching Torx/E-Torx socket, allowing the stud to be installed into a tapped hole without gripping the threaded portion. This is particularly useful when the stud must be installed to a specific depth or when access to the threaded connection is limited after assembly.
The combination of an external Torx installation drive and hardened Class 10.9 steel makes these studs well suited for applications requiring a strong, durable threaded connection with controlled and repeatable installation.
The choice of plain or zinc plated finish allows the stud to be matched to the environmental and corrosion-resistance requirements of the application.
Where are Torx Drive Double End Metric Studs commonly used?
Class 10.9 Torx drive double end metric studs are commonly used in automotive manufacturing, engines, transmissions, motorcycles, machinery, machine tools, industrial equipment, automation systems, robotics, fixtures, jigs, pumps, motors, gearboxes, brackets, housings, and mechanical assemblies.
They are particularly useful for attaching covers, panels, brackets, mounting plates, guards, manifolds, flanges, and other removable components to tapped holes where a conventional bolt may not be practical. The external Torx drive is especially beneficial in OEM production, assembly-line manufacturing, equipment manufacturing, maintenance, repair, and fabrication where secure stud installation and consistent assembly are important.
Zinc plated versions are well suited for general industrial, automotive, agricultural, construction, and equipment applications where improved resistance to moisture and atmospheric corrosion is desired, while plain versions are useful in protected or dry environments.
