Class 10.9 Steel

Coarse to Fine Step Stud

SKU: 00-SH10X1.5-12X1.5
Buy in bulk & save
Select options above to see pricing.

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

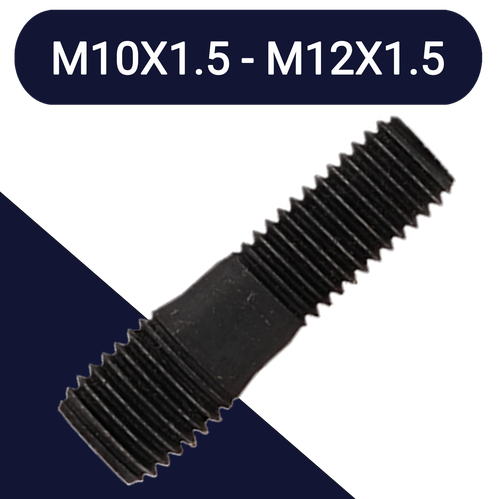

Metric Step-Up Stud / Double Ended / Steps from 10X1.5 Coarse to M12X1.5 Fine

Step studs have a different diameter on each end. These studs "step up" from M10X1.5 Coarse Thread on one side to M12X1.5 Fine Thread on the other side.

Double ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end.

Both sides are right hand threaded and can accept a nut or installation into a tapped hole.

Lengths shown are overall.

Material Class 10.9 metric studs provide a medium strength, high tensile fastening solution. Pair with Class 10 or stronger nuts.

Finish Black oxide provides minimal corrosion resistance, best for indoor, dry environments. This finish is not suitable for outdoor applications, and will rust when exposed to moisture.

Also known as step down stud, threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastener

Watch our video about the stud installation tool here.
