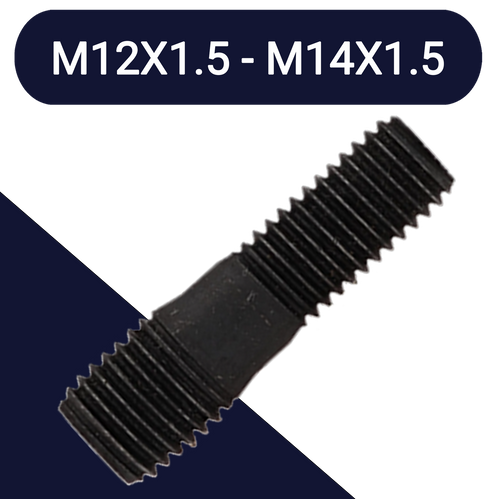

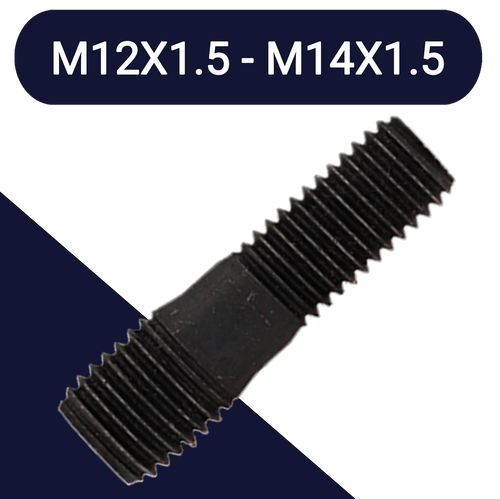

What are M12X1.5 Fine x M14X1.5 Fine Step Studs?
M12X1.5 fine x M14X1.5 fine step studs are metric threaded studs with M12X1.5 fine thread on one end and M14X1.5 fine thread on the other end, with the stud stepping up in diameter between the two threaded sections.
This design allows a single fastener to connect components with different M12X1.5 and M14X1.5 thread requirements, making it useful for specialized mechanical assemblies, adapters, and component mounting applications. Both ends use a fine 1.5mm thread pitch, while the different thread diameters allow the stud to transition between two different metric thread sizes.
What material are these M12X1.5 x M14X1.5 Step Studs made from?
These step studs are manufactured from hardened Class 10.9 high-strength steel with a plain, uncoated finish. Class 10.9 steel provides high tensile strength and is well suited for demanding mechanical fastening applications where greater strength is required.
The plain finish leaves the steel uncoated and is commonly used for dry indoor applications, protected assemblies, or applications where corrosion protection is supplied separately.
Why choose M12X1.5 Fine x M14X1.5 Fine Step Studs?
The primary advantage of this step stud is the combination of two different metric thread diameters with the same fine 1.5mm thread pitch. The M12X1.5 end can be installed into an M12X1.5 threaded component, while the larger M14X1.5 end provides a larger threaded connection for a nut or mating component. Fine threads provide more threads per unit of length than coarse threads and can be useful where increased thread engagement, precise adjustment, or specialized OEM thread specifications are required.
Where are M12X1.5 Fine x M14X1.5 Fine Step Studs commonly used?
These specialized step studs are commonly used in automotive manufacturing, engines, transmissions, motorcycles, machinery, machine tools, industrial equipment, hydraulic equipment, pneumatic equipment, automation systems, robotics, fixtures, jigs, pumps, motors, gearboxes, brackets, housings, and mechanical assemblies.
They are particularly useful in automotive and OEM applications where an M12X1.5 threaded component must transition to an M14X1.5 threaded connection, as well as for attaching manifolds, flanges, mounting components, brackets, covers, panels, and other mechanical parts with different metric thread requirements.
These step studs are also valuable for machine building, equipment repair, maintenance, fabrication, replacement parts, and specialized mechanical assemblies where two different fine metric thread diameters are required in one high-strength fastener.
