Detail & Specs

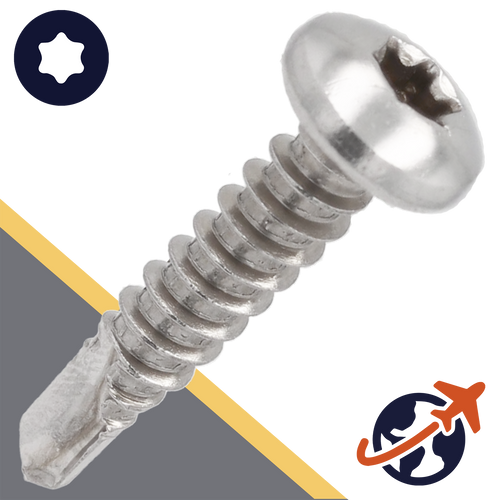

M5.5 Pan Head Torx Self Drilling Screw - A2 Stainless DIN 7504 Type "M"
Type "M" Refers to Pan Head Shape
Wide pan head style self drilling screws with chamfered / curved sides and a recessed six lobe drive, one of the most common machine screw styles. Also known as fillister head.
How to Measure Length
Measure from underneath the head to the end of self drilling tip
Which materials can this screw be used with?
Light Gauge Sheet Metal, 2mm - 6mm thickness
Wood / Timber, Engineered Wood, Composite Wood, Hardwood
Some plastics
What are the benefits of choosing this screw?
Drill-shaped point, eliminates need for pilot hole (saving time / money)
All “self-drilling” screws are considered “self-tapping”, but not all self-tapping are self-drilling
Why choose a Six-Lobe Torx Drive?
Torx drive screws provide higher torque transfer because the driving forces are transferred to each surface of the six lobes (wobble-free), instead of the four edges of the four edges on a phillips drive. Less overall force is needed to install these screws.
Material: A2 / SAE Type 304
A2 Stainless self drilling screws are commonly used on metal construction projects: residential and commercial exteriors, solar installation, decking, terraces, fences, exterior stairs, porch furniture, recreational / playground equipment, pergolas, facades, railings, architectural facades and finish work.
For any application involving marine (salt water), use A4 / 316 Stainless Steel material, also available as a special order.
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities
- Special Order Parts are Not Returnable & Cannot be cancelled after order confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
