M5 Set Screw

Steel Class 45H

DIN 916 Cup Point

Buy in bulk & save
Select options above to see pricing.

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

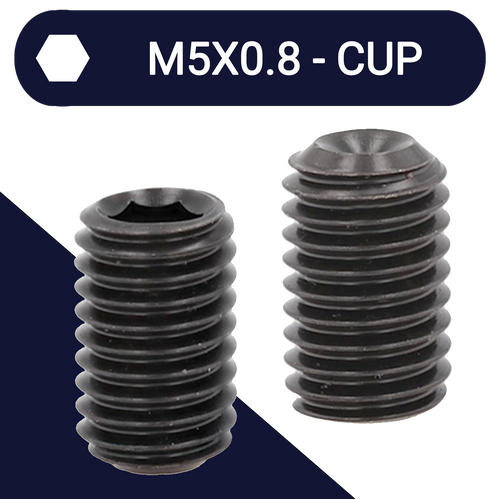

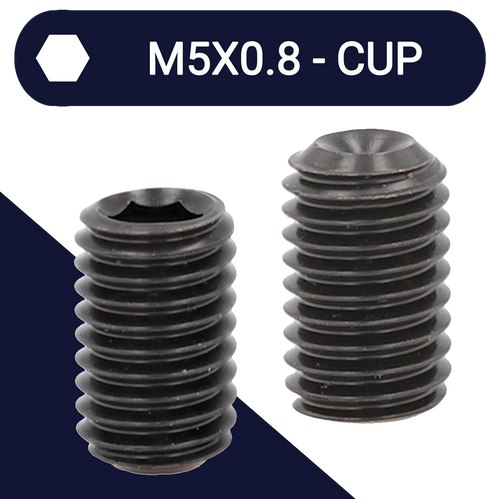

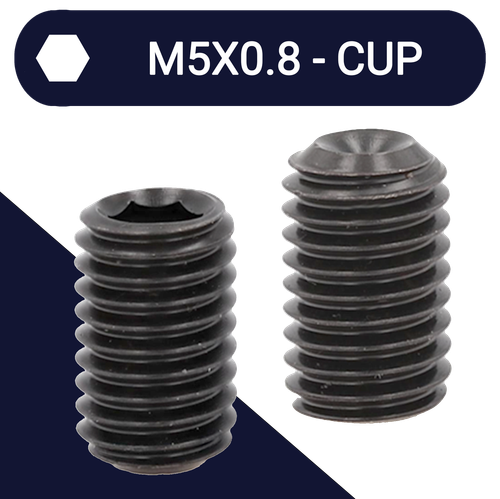

M5 Metric Cup Point Allen Set Screw

Set screws are commonly used in tight areas, sitting flush with or below the work surface. Cup point set screws have a concave indentation at one end. The cupped edge of the concave helps secure the set screw into place by digging to the contact surface material. This point style also helps prevent loosening from vibration.

For use in compression only, not for tensile or shear loads. Set screws can be used as an easy-to-install alternative to full thread studs because they have an internal allen socket drive at one end for compression use only.

Measured by overall length, an allen socket hex drive is used to tighten this set screw.

A black oxide finish provides minimal corrosion resistance, best for indoor, dry environments. This finish is not suitable for outdoor applications, and will rust when exposed to moisture.

Alternate Specification
ISO 4029

Also known as an allen drive type set screw with cup point, blind screw, fully threaded internal drive headless allen fastener. Set Screws can also be used as allen drive studs to be used in tight areas

Special Order Variations

Additional Finishes: Zinc Plated Steel / A4 & A2 Stainless Steel
Additional Forms:
DIN 914 / ISO 4027 Cone Point
DIN 915 / ISO 4028 Dog Point
DIN 553 Slotted Drive Grub Screws
