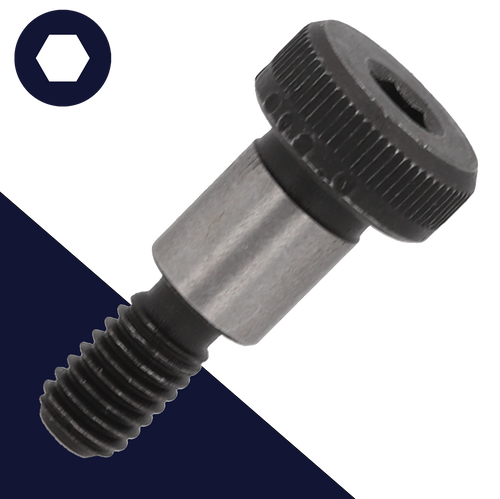

M6 Metric Shoulder / Stripper Bolt with Allen Hex Socket
M6X1.0 Threading with M8 Shoulder Diameter
Socket head shoulder bolts are great for limited space installation areas. An allen wrench is used to install these screws, allowing access into tight locations where a traditional external hex drive bolt would not fit.
Black oxide finish provides minimal corrosion resistance, best for dry environments.
Specification
ISO 7379 / ANSI B18.3.3M
Length of threading will be consistent for the thread diameter. M6X1.0 will always have a taper + thread length of 11mm
Material
Class 12.9 Heat Treated Alloy Steel
Tensile Strength: 140,000 psi
Also known as m6-8.00 shoulder screw, thread fit: 5g6g
Special Order Variations
Additional Lengths: M6X40, M6X45, M6X50
Additional Diameters:
M10X1.5 Threading with M12 Shoulder Diameter
M12X1.75 Threading with M16 Shoulder Diameter
