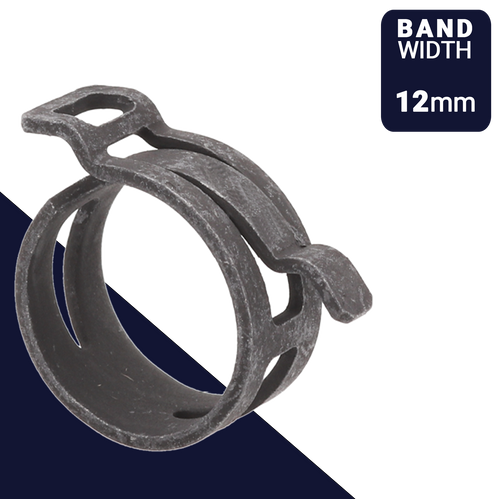

Constant Tension Hose Clamp, LOW PROFILE
The tabs of this space saver clamp angle downwards, following the curve of the clamp to allow for easy access in tight work areas. Low tab profile self-tensioning spring band clamp provides a leak-free seal by adapting to the expansion and contractions of hoses subject to fluctuating temperature (within engine compartments). Made in Germany. All Constant Tension Clamps exceed SAE J1508 standards.
Determining Size
When selecting a suitable clamp, measure the expanded hose diameter after the hose is placed on the barb, not just the outer dimension of the hose before it is placed on the barb.
BelMetric provides 2 sets of measurements for evaluating the sizing of these clamps:
1. The manufacturer's size ranges are provided to us based on the design of the clamps by the manufacturer.
2. The BelMetric size ranges are based on our in-house measurements of the clamps when they are fully relaxed and fully opened in tension.
Material + Finish
51CrV4 steel similar to SAE 6150
Zinc Rich Epoxy Plated for corrosion protection (Magni 585), Black
Salt Spray Rating: 760 hours
Temperature Ranges: -40C to 180+C
Applications
Cooling and heating systems
Up to 300 Kpa (45 Psi) excess pressure
Fuel Line systems
Up to 700 Kpa (101 Psi) excess pressure
Air induction systems
Up to 200 Kpa (29 Psi) excess pressure
Power steering systems, fuel systems, air intake systems, charged air systems, and diesel particulate filters.
Learn how to measure and install a constant tension clamp here
