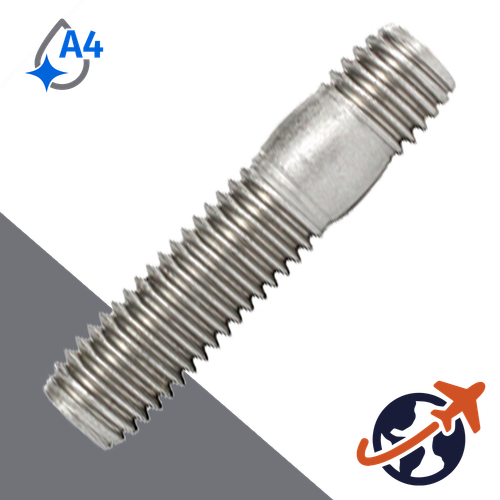

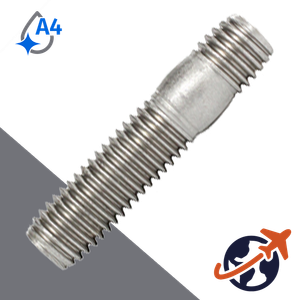

Metric DIN 939 Double Ended Stud / STAINLESSDouble ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.Lengths shown are overall. Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.MaterialA2-50 Stainless studs are commonly used in damp environments for corrosion resistance, popular across a wide range of industries: automotive, motorsport, industrial machinery, architectural finish work, agriculture, food processing, clean energy, etc. For any application involving marine (salt water), use A4 / 316 Stainless Steel material.Also known as threaded pin, tap end stud bolt, setup stud, externally machine threaded headless fastenerSpecial Order Variations:Available Material: A4 Stainless SteelAdditional Diameters: M12, M16, M20, M24, M27, M30Watch our video about the stud installation tool here.
Included SKUs:
Y939-A4-6X43-200,
Y939-A4-6X68-200,
Y939-A4-6X108-200,
Y939-A4-6X58-200,
Y939-A4-6X33-200,
Y939-A4-6X118-200,
Y939-A4-6X88-200,
Y939-A4-6X63-200,
Y939-A4-6X53-200,
Y939-A4-6X78-200,
Y939-A4-6X128-200,
Y939-A4-6X83-200,
Y939-A4-6X28-200,
Y939-A4-6X98-200,
Y939-A4-6X73-200,
Y939-A4-6X48-200,
Y939-A4-6X23-200,
Y939-A4-6X93-200,
Y939-A4-6X38-200,
Y939-A4-6X103-200
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities and are Not Returnable & Cannot be cancelled after confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
