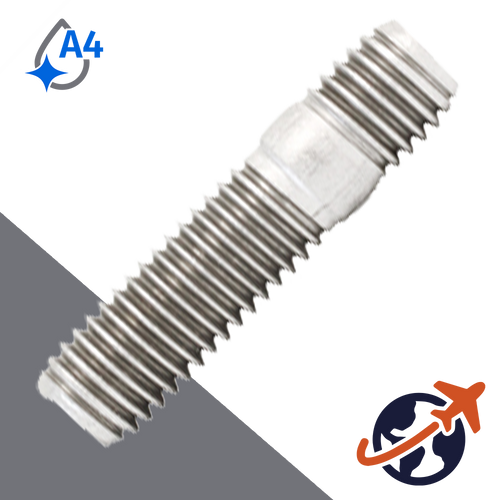

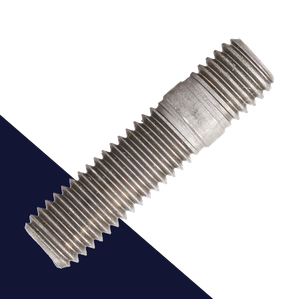

Metric DIN 938 Double Ended Stud / STAINLESSDouble ended studs, or "tap end studs" have a shorter length of thread on one side, an unthreaded middle shank, and a longer length of thread at the other end. Both sides are right hand threaded and can accept a nut or installation into a tapped hole.Lengths shown are overall. Each stud can also be identified by a DIN "nominal" length. Nominal stud length is equal to the measurement of the middle shank length plus the longer thread length.MaterialA2-70 Stainless studs are commonly used in damp environments for corrosion resistance, popular across a wide range of industries: automotive, motorsport, industrial machinery, architectural finish work, agriculture, food processing, clean energy, etc.For any application involving marine (salt water), use A4 / 316 Stainless Steel material.Also known as threaded pin, setup stud, tap end stud bolt, externally machine threaded headless fastenerSpecial Order Variations:Available Material: A4 Stainless SteelAdditional Diameters: M12, M16, M20, M24Watch our video about the stud installation tool here.
Included SKUs:
Y938-A4-8X58-200,
Y938-A4-8X103-200,
Y938-A4-8X53-200,
Y938-A4-8X88-200,
Y938-A4-8X38-200,
Y938-A4-8X83-200,
Y938-A4-8X33-200,
Y938-A4-8X68-200,
Y938-A4-8X24-200,
Y938-A4-8X63-200,
Y938-A4-8X98-200,
Y938-A4-8X118-200,
Y938-A4-8X48-200,
Y938-A4-8X93-200,
Y938-A4-8X108-200,
Y938-A4-8X78-200,
Y938-A4-8X43-200,
Y938-A4-8X128-200,
Y938-A4-8X28-200,
Y938-A4-8X73-200
Special Order Product Policy
- Special Order Parts are Available ONLY in Box Quantities and are Not Returnable & Cannot be cancelled after confirmation
- Free Domestic Shipping over $99 will be offered in your special order quote if applicable.
- For a full list of Special Order Policies: Please Click Here
