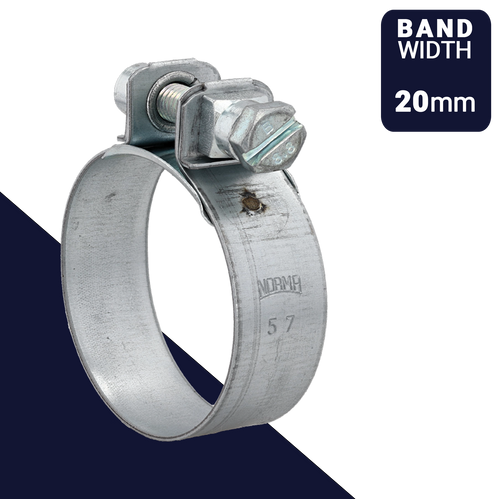

57mm High Pressure NORMACLAMP Brand S Series
Hex Head Slotted Drive
NORMACLAMP S features a robust clamping brackets structure including a M8X40 metric screw to provide a high level of evenly distributed clamping force resulting in excellent sealing properties. The smooth bridge piece underneath the brackets structure provides optimum hose protection.
Suitable for attaching rubber and plastic hoses as well as rubber sleeves to pipe ends or hose spigots. This clamp can be used for clamping containers, pipes and cables. Elbow fittings, brackets or lugs can be attached.
Measurements
Open Clamp Diameter: 58mm
Closed Clamp Diameter: 53mm
Band Width 20mm
Band Thickness: 1.0mm
Slotted (Zy) Drive
Bolt Size: M8X40
Wrench size: 13mm
Clamp Material: W1 Galvanized Steel
Corrosion Resistance in Salt Spray Testing: Min. 72 h
DIN 3017
Commonly used in automotive restoration projects. Additional applications include machine building, chemical industry, irrigation systems, ship manufacturing, railway industry, agricultural machines, building machines, engine manufacturing and pump and filter assemblies.
Brand: Norma (stamped on band)
Product Line: NORMACLAMP S
Made in Germany by Norma
