Top Lock Flange Nut DIN 6927

Steel Class 8

Coarse Thread

SKU: 00-NTL-Z
Buy in bulk & save
Select options above to see pricing.
$0.45

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

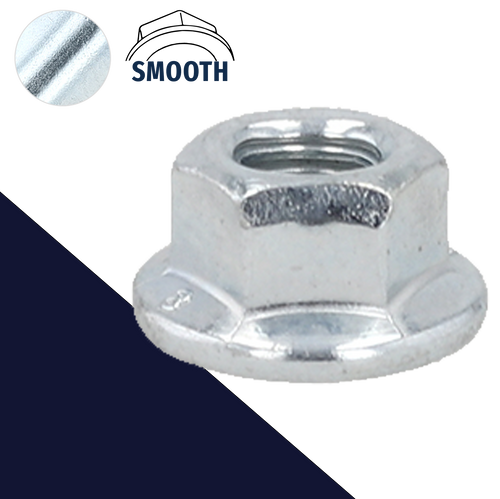

M5X0.8, M5X.8, M5 Metric Top Lock / Prevailing Torque Flange Nut

Prevailing torque nuts prevent against vibration loosening. The design of this all metal non-circular hex drive nut provides resistance when tightened down on a bolt thread.

The friction between the threads of the nut and the bolt increases the amount of force needed to tighten (and lock) the assembly into place.

Diameter: 5mm Pitch: 0.8 Coarse Thread

Height: 6.2mm

Wrench Size: 8mm

Flange Diameter: 11.8mm

DIN 6927 / ISO 7044

Material: Class 8 Steel

Finish: Zinc Plated

Also known as all metal lock nut, hex flange nut, prevailing torque nut, stover flange nut.
