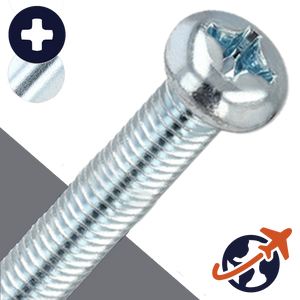

M5X0.9 EXTRA COARSE / Small Pan Head Machine Screw
The industry wide manufacturing specification used today for M5 JIS and DIN hardware is M5X0.8 coarse threading. This M5 screw is threaded to the 0.9mm extra coarse pitch and will only thread into a nut or tapped hole measuring M5X0.9.
**Please double check your thread pitch prior to ordering.**
Specification
RETIRED (1960s and Prior) Version of JIS Specification: JIS B-1111
Japanese Industrial Standard
Head Style
Special "JIS" small head diameter style screw with chamfered / curved sides and a recessed phillips drive. Length is measured from underneath the head.
The reduced head size allows installation in tight space restricted areas, commonly used for motorcycles and other automotive applications. The head height and head diameter of this pan head screw is roughly 10-13% smaller than a standard pan head machine screw.
Also known as Cross Recess Pan Head Machine Screw, Phillips pan head screw.
Finish
Zinc / Chromate plated finishes provide corrosion resistance
