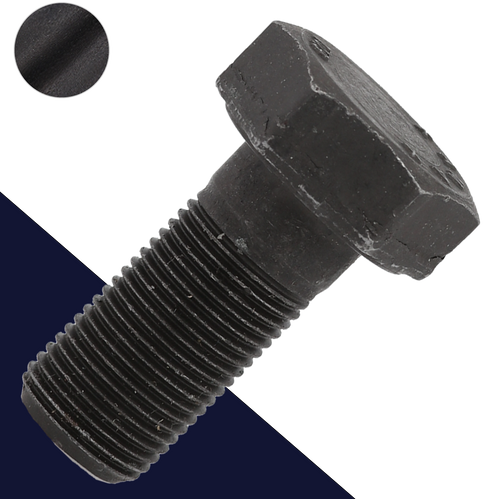

M14X1.25 Ex Fine Hex Bolt

Steel Class 10.9 Hard

DIN 961

SKU: 00-BH14X1.25BLK-Z
$44.99

This configuration is not available. Make another selection.

Detail & Specs

This configuration is not available. Make another selection.

M14X1.25 Extra Fine Hex Bolts 10.9: DIN 960 Partial Thread/ 961 Full Thread

Extra fine thread M14X1.25 metric hex bolts are extremely rare due to the uncommon 1.25mm thread pitch. Please double check your thread pattern measurements prior to ordering this size.

Hexagon style head bolts are one of the most commonly used fasteners, available in full thread or partial thread configurations. Class 10.9 metric hex bolts are considered hardened, providing a high strength, high tensile fastening solution. Pair with Class 10 or stronger nuts.

Fully threaded hex bolts are often referred to as tap bolts, the entire length of the bolt is meant to engage with a tapped hole.

Hex bolts can be used with many different styles of locking and non-locking nuts, tightly clamping together whatever the bolt is being used to secure. A wrench is used to install and tighten hex bolts.

Also known as

Extra fine thread hex cap screw, HHCS, hexagonal head screw, six sided head screw with machine thread, machine bolts.

Use

To be used with locking or non-locking nuts or in a tapped hole.
